API 6A FMC SPM 2" FIG 1502 Plug Valve Male / Female Half Union Ends H2S Service
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API 6A |
| Model Number: | SPM, FMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD200-500/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
|
Detail Information |
|||
| Product Name: | API 6A FMC SPM 2" FIG 1502 Plug Valve Male & Female Half Union Ends H2S Service | Keywords: | FMC Plug Valve |
|---|---|---|---|
| Application: | Oilfield Manifold | Size: | 1", 2", 3" |
| Pressure: | 42 Mpa ~ 140 Mpa | Working Temperature: | -29°C~121°C(Class PU) |
| Material Class: | AA,BB,CC,DD,EE,FF,HH | Specification Level: | PSL1-4 |
| High Light: | 2" FIG 1502 Plug Valve,Oilfield Manifold FMC Plug Valve,Female Half Union Ends Plug Valve |
||
Product Description

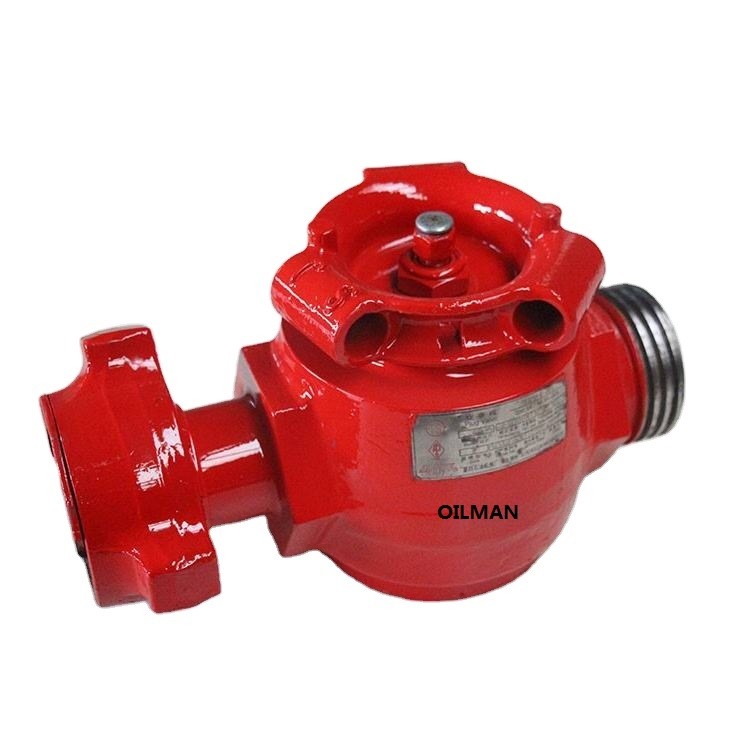

API 6A FMC SPM 2" FIG 1502 Plug Valve Male & Female Half Union Ends H2S Service
Our plug valves are pressure balanced type and have replaceable metal liners between the body and plug. Plug Valves are available in Unit 1 "to 3", cold working pressure of 42 ~ 105MPA, they come in multiple bores and are available up to 15,000 PSI for standard service and 10,000 PSI for H2S or sour gas service. Repair kits are also available to increase their life and make them perform safely for longer. These manually operated valves are fitted with high stem torques and manual gearboxes.
These Plug Valves are designed to meet the needs and requirements of the oilfield. They can withstand the high erosion rates and pressures encountered in today's operating environment.
1.Standard: API 6A
2.Pressure of work: 42MPA ~105MPA(6000PSI ~15000PSI)
3.Norminal Diameter: 1" ~3"
4.Temperature Rating: -29 ℃ ~121 ℃
5.Threads Connection: NPT Female xNPT Female, hammer union connection
| S/N | Model | Description | Rated | WPEnd connection |
| 1 | SF42-1” | 1” plug valve | 6000psi | 2”male (LP) |
| 2 | SF70-1” | 1” plug valve | 10000psi | 2”male (LP) |
| 3 | SF105-1” | 1” plug valve | 15000psi | 2”male (LP) |
| 4 | SF105-1” | 1” plug valve | 15000psi | 2”union (F*M) |
| 5 | SF42-2” | 2” plug valve | 6000psi | 2” female (LP) |
| 6 | SF42-2” | 2” plug valve | 6000psi | 2”union (F*M) |
| 7 | SF70-2” | 2” plug valve | 10000psi | 2” female (LP) |
| 8 | SF105-2” | 2” plug valve | 15000psi | 2”union (F*M) |
| 9 | SF42-3” | 3” plug valve | 6000psi | 3”female (LP) |
| 10 | SF70-3 | 3” plug valve | 10000psi | 3”female (LP) |
| 11 | SF105-3 | 3” plug valve | 15000psi | 3”union (F*M) |
