API 16C 2" Chiksan Cementing And Circulating Hose Loop FIG 1502 105MPa
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API 16C |
| Model Number: | Fig1502 Hose Loop |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pc |
|---|---|
| Price: | USD500-2000/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
|
Detail Information |
|||
| Product Name: | API 16C 2" FIG 1502 105MPa Chiksan Cementing And Circulating Hose Loops | Keywords: | Hose Loop |
|---|---|---|---|
| Application: | Oil Field Cementing, Acid Fracturing, Etc | Size: | 1" - 4" |
| Working Pressure: | 42MPa(6000psi), 70MPa (10000psi), 105MPa(15000psi) | Connection: | Swivel Joint, Hammer Union |
| Material: | Alloy Steel | Working Medium: | Oil,natural Gas And Gas Containing H2S,CO2 |
| High Light: | Chiksan Cementing Hose Loop,FIG 1502 Circulating Hose Loop,API 16C Alloy Steel Wellhead Assembly |
||
Product Description

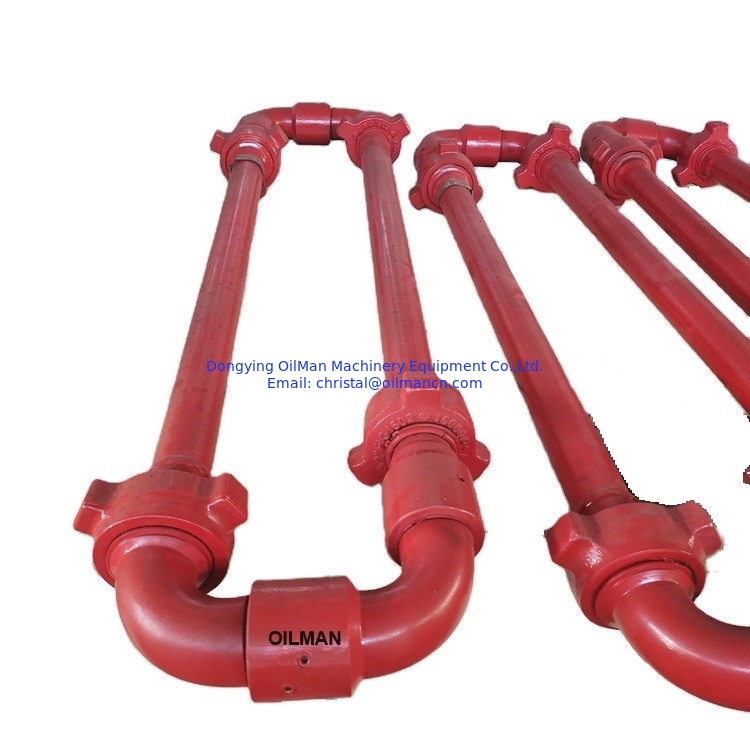

API 16C 2" FIG 1502 105MPa Chiksan Cementing And Circulating Hose Loops
1.Product Overview
The hose loop is used in oil field cementing, acid fracturing, etc;
The hose loop is assembled by swivel joint, hammer union and pup joint, can be swiveled in three directions flexibly;
The hose loop can be used in discharge pup joint, transportation pup joint, well testing pup join, well cementing pup joint, and transportation liquid flow under high pressure environment;
The hose loop can be matched with many kinds of swivel joints;
The hose loop has specifications of 2in, 3in, 4in and is adaptive to working under 42MPa(6000psi), 70MPa (10000psi), 105MPa(15000psi);
Hummer union can be connected or disconnected with pup joint. The disconnection is suitable for low pressure pup joint and connection is suitable for high pressure pup joint;
We are able to supply hose loop in each specification, pressure, length (according to expanded size) according to users’ needs.
2.Design Features
1)The swivel joint attached to hose loop is characterized by flexibility, impact resistance, vibration resistance, big rate of flow, etc.
2)The hose loop has fine sealing performance;
3)The hose loop is connected by union, which is simple to assemble and disassemble, crush resistance, and high sealing performance. It has the advantages of easy foldability, convenient transportation and storage;
4)We are supplying H2S proof hose loop under acid environment;
5)The thread joint conforms to international specifications and can be exchanged to like products internationally.
3.Common Buckle Models for hose loop
Pup joint has different lengths, including 1’, 2’, 3’, 4’, 5’. It can be also made in other specifications according to users’ needs.
| specification | Name | Cold working press | Terminal connection type | Buckle model |
| Tr100×12 | Thread sealing hose loops Integral hose loops H2S proof hose loops |
42MPa | Tr100×12 | Metric system |
| Tr99×12.7 | 42MPa | Tr99×12.7 | British system | |
| 2"×42 | 42MPa | 3.8125-3Stub Acme-2G | fig602 | |
| 2"×70 | 70MPa | 3.8125-3Stub Acme-2G | fig1002 | |
| 2"×105 | 105MPa | 4.125-3-Acme-2G | fig1502 | |
| 3"×42 | 42MPa | 5.375-3Stub Acme-2G | fig602 | |
| 3"×70 | 70MPa | 5.375-4-Acme-2G | fig1002 | |
| 3"×105 | 105MPa | 5.375-3.5-Acme-2G | fig1502 | |
| 4"×42 | 42MPa | 6.25-3Stub Acme-2G | fig602 | |
| 4"×70 | 70MPa | 6.25-4-Acme-2G | fig1002 | |
| Remark:How to place an order:Integral hose loop-3"×105 -8’ (according to expanded size) According to users’ drawing |
||||
