API Oilfield Full Opening Drill Pipe Safety Valve FOSV Kelly Valve Cock
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API 7-1 |
| Model Number: | All size |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD500-10000/pc |
| Packaging Details: | Export wooden case |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pieces per month |
|
Detail Information |
|||
| Product Name: | API Oilfield Full Opening Drill Pipe Safety Valve FOSV, Kelly Valve, Kelly Cock | Keywords: | Full Opening Safety Valve FOSV |
|---|---|---|---|
| Outside Diameter (mm): | 89 - 190 | Inside Diameter (mm): | 30 - 82.6 |
| Type: | Safety Relief Valves | Structure: | Ball Type |
| Pressure: | PN10/PN16/PN25 | Material: | Alloy Steel |
| High Light: | API Drill Pipe Safety Valve,Kelly Valve Drill String Components,Oilfield Opening Drill Pipe Safety Valve |
||
Product Description
API Oilfield Full Opening Drill Pipe Safety Valve FOSV, Kelly Valve, Kelly Cock
Full Opening Safety Valve (short for FOSV) is a ball type safety valve used to stop flow through the drill string when the drill string is being withdrawn from the well.
Our FOSV is dual body full-opening safety valve, so it does not interfere with the running of tools such as core barrels or survey instruments. It is designed to be stabbed into the top joint of drill pipe or tubing string at the rig floor and closed quickly in case a well kicks.
The ball-type design permits the valve to be compact, easy to handle, and yet have great strength. Standard test pressure is 10,000PSI, but higher pressure ratings are available.
FOSV and operating wrench be should be maintained on the rig floor at all times.
When ordering please specify:
Connection.
O.D. and I.D.

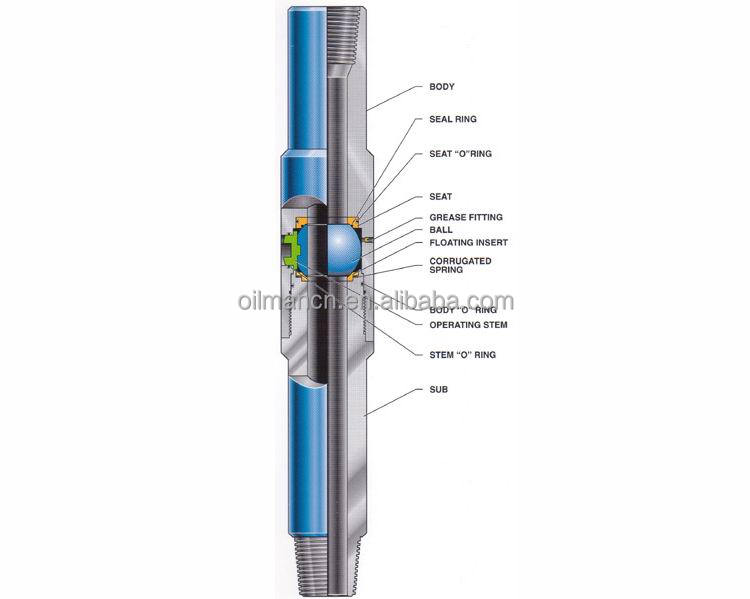

Full Opening Safety Valve (FOSV)
