Drill Rod Adapter Crossover Sub/X-Over Subs/Saver Sub/Drill Bit Sub For Drilling Tools
Product Details:
| Place of Origin: | China |
| Certification: | API & ISO |
| Model Number: | All types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD100-1000/pc |
| Packaging Details: | Export Wooden Case or Pallet |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Product Name: | Drill Rod Adapter Crossover Sub/X-Over Subs/Saver Sub/Drill Bit Sub For Drilling Tools | Keywords: | Drilling Crossover Sub |
|---|---|---|---|
| Application: | Oil Drilling | Material: | AISI 4145H |
| Highlight: | AISI 4340 Drill String Components,X Over Subs,7 THRU 10 X Over Subs |
||
Product Description

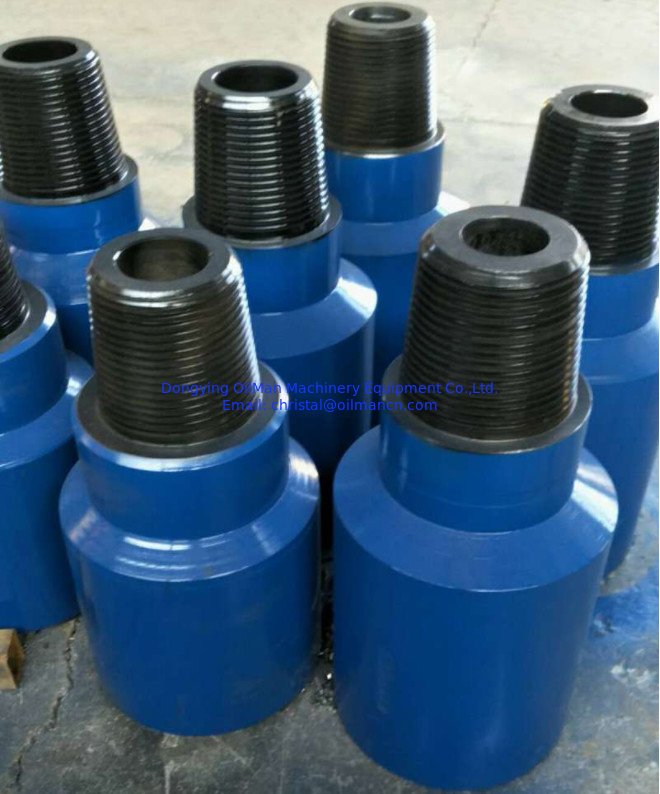

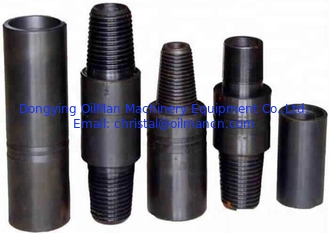

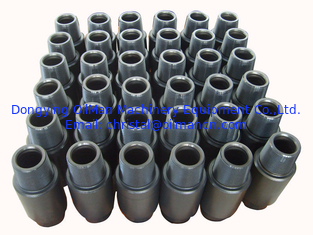

Drill Rod Adapter Crossover Sub/X-Over Subs/Saver Sub/Drill Bit Sub For Drilling Tools
Description of crossover sub:
Crossover sub is mainly used to connect upper and lower drill tools in different connectors in drilling operations. Also it can be used to protect other tooling in drill stem (called saver sub) or be used to deliver outgoing air to the bit face just above the bit (called bit sub).
The length of crossover subs is generally measured from shoulder to shoulder. Typical lengths range from 6" - 28" long going up in increments of 2 inches with AISI 4145H, AISI 4145H Mod, AISI 4340, AISI 4140-4142 and Non-magnetic material. All connections are phosphate-coated or copper plated to improve resistance to corrosion. Crossover subs come in three basic types: A Pin (male) * Box (female); B Pin (male) * Pin (male); C Box (female) * Box (female)
API Drilling Crossover Sub
| Description | Upper Connection Part | Lower Connection Part | Type |
| Kelly cross-over sub | Kelly | Drill pipe | A or B |
| Drill pipe cross-over sub | Drill pipe | Drill pipe | A or B |
| Interim cross-over sub | Drill pipe | Drill collar | A or B |
| Drill collar cross-over sub | Drill collar | Drill collar | A or B |
| Drill bit cross-over sub | Drill collar | Drill bit | A or B |
| Swivel cross-over sub | Swivel lower sub | Kelly | C |
|
Fishing cross-over sub |
Kelly | Drill pipe | C |
| Drill pipe | Fishing tools | C | |
| Crossover sub can be customized as per customer's design. | |||
Mechanical Properties
| O.D. Range | Min. Yield Strength |
Min. Tensile strength |
Elongation Min. | Min. Brinell Hardness |
| 3.1/2 THRU 6.7/8 |
760Mpa | 965Mpa | 13% | 285 |
| 7 THRU 10 | 690Mpa | 930Mpa | 13% | 277 |
If any needs, pls contact us freely:
