API 6A Fig 1502 High Pressure Dart Type Check Valve FMC WECO 2 Inch
Product Details:
| Place of Origin: | China |
| Certification: | API 6A |
| Model Number: | All Models |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD300-800/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pieces per month |
|
Detail Information |
|||
| Product Name: | API 6A FMC WECO 2 Inch Fig 1502 High Pressure Dart Type Check Valve | Keywords: | Fig1502 Dart Type Check Valve |
|---|---|---|---|
| Usage: | Oil & Gas Drilling | Size: | 2", 3", 4" |
| Working Pressure: | 15000 Psi | Connection End: | Hammer Union M X F |
| Material Class: | AA - EE | Specification Level: | PSL1-3 |
| Highlight: | High Pressure Dart Type Check Valve,Fig 1502 Dart Type Check Valve,High Pressure Check Valve API 6A |
||
Product Description

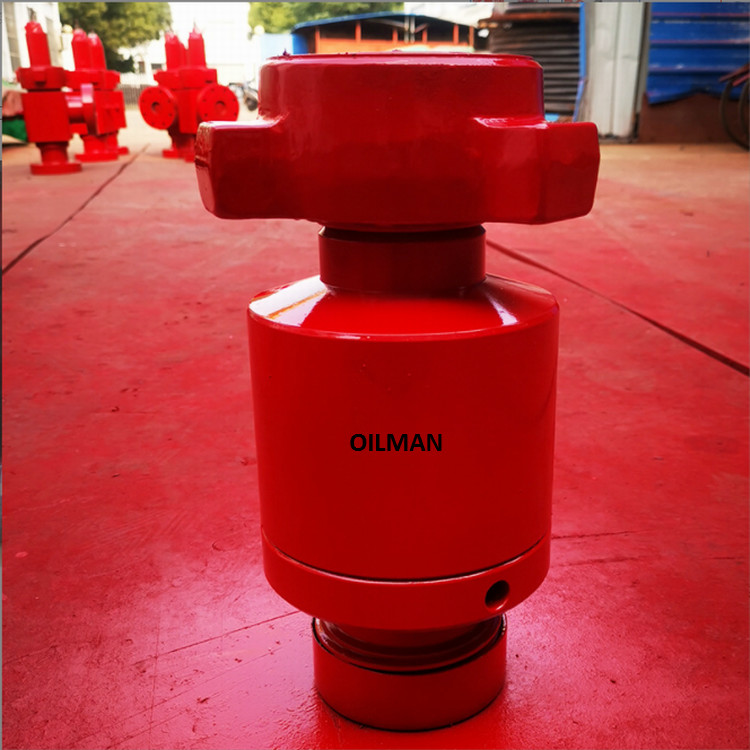

API 6A FMC WECO 2 Inch Fig 1502 High Pressure Dart Type Check Valve
Dart Check Valve
Check Valves are installed in high pressure lines to stop reserve flow by the automatic close of flapper or dart. Flapper check valves include top-entry check valves and in-line flapper check valves, which allow fluids to flow towards the wellbore and prevent flowing backwards. For dart check valves, the flow will open the dart by overcoming the small spring force. When the flow runs in opposite direction, the spring will push the dart against the seat retainer to prevent reserve flow.
We provides both standard and reverse-flow check valves. And we have also developed check valves for sour service in accordance with NACE MR0175.
Features
(1). Check valves are suitable for isolating completion fluid, high pressure processing and rig equipment repairing.
(2). The surface of valve internal baffle is covered with nitrile-butadiene rubber to extend life.
(3). The thread and the joint of ball face adopts American standard.
(4). The valve is casted by hard alloy steel and adopts union connection.
Specifications
| Product Name | High pressure check valve |
| Material Class | AA-EE |
| Working Media | Crude oil and natural gas |
| Processing Standard | API 6A |
| Working Pressure | 3000~15000 psi |
| Processing Type | Forge |
| Performance Requirement | PR 1-2 |
| Product Specification Level | PSL 1-3 |
| Nominal Bore Diameter | 2”, 3” |
| Connection Type | Union, Box thread, Pin thread |
| Types | Flapper, Dart |
