2" 4" Wellhead Assembly High Pressure Pup Joint For Oil Gas Drilling
Product Details:
Place of Origin: | China |
Certification: | API 16C |
Model Number: | High Pressure Pup Joint |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 pc |
---|---|
Price: | USD50-500/pc |
Packaging Details: | In Bundles |
Delivery Time: | 25-30 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pieces per month |
Detail Information |
|||
Product Name: | 2" 4" Weco High Pressure Pup Joint | Keywords: | High Pressure Pup Joint |
---|---|---|---|
Application: | Oil & Gas Drilling | Connection: | Welding, Flanged, Hammer Union |
Size: | 1" - 4" | Working Pressure: | 7MPa To 105MPa |
Working Temperature: | -29℃+121℃(PU) | Material: | Alloy Steel |
Highlight: | High Pressure Pup Joint,Oil Gas Drilling Pup Joint,Wellhead Tubing Pup Joint |
Product Description

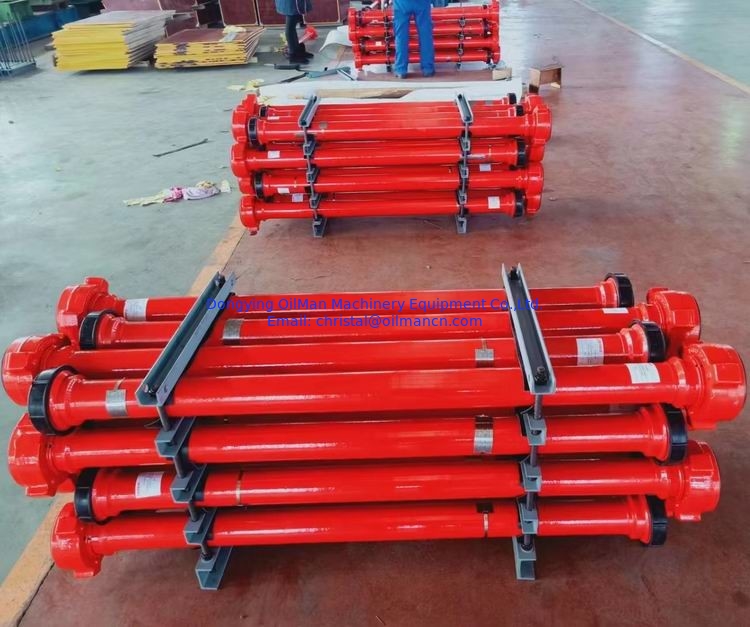

2" 4" Weco High Pressure Pup Joint
1) High pressure pup joints have four different types: pressure seal, non-pressure seal, integral type and welding type.
2) We can provide 1"~4" and 1000psi to 15000psi(7MPa to 105MPa) straight pipes. 1m,1.5m,2m,2.5m,2.8m long integral straight pipes are available. We also provide HP straight pipes with other sizes and pressure ratings as per customers' requirements.
3) The model of Pressure Seal Type: FIG402 union ,FIG602 union ,FIG1002 union ,FIG1502 union ;rated:4000psi(28MPa)~15000psi(105MPa).
4) The model of Non-pressure Seal Type: FIG206 union, FIG602 union,FIG1002 union,FIG1502 union; rated: 2000psi (14MPa) ~ 15000psi (105MPa).
5) The model of Conventional Integral Type: FIG602 union,FIG1002 union,FIG1502 union;rated: 6000psi(42MPa)-15000psi(105MPa).
6) The model of Integral Type for H2S environment: FIG602 union,FIG1002 union,FIG1502 union;rated: 5000psi(35MPa)-10000psi(70MPa).
7) The model of Welded Union Type: FIG402 union,Tr union in metric,FIG602 union,FIG1002 union,FIG1502 union;rated: 4000psi (28MPa) - 15000psi (105MPa).
8) The model of Welded Flange Type ; 21/16″flange,29/16″flange,31/8″flange,41/16″flange,31/16″flange;rated: 3000psi (21MPa) - 15000psi (105MPa).
Description | End connection | Rated WP | Size(inch) | ||||
1" | 1-1/2“ | 2" | 3" | 4" | |||
Pressure Seal Type | FIG402 union | 4000psi(28MPa) | y | y | y | y | |
FIG602 union | 6000psi(42MPa) | y | y | y | y | ||
FIG1002 union | 10000psi(70MPa) | y | y | y | y | y | |
FIG1502 union | 15000psi(105MPa) | y | y | y | y | ||
Non-pressure Seal Type | FIG206 union | 2000osi(14MPa) | y | y | y | ||
FIG602 union | 6000psi(42MPa) | y | y | y | |||
FIG1002 union | 10000psi(70MPa) | y | y | y | y | ||
FIG1502 union | 15000psi(105MPa) | y | y | y | |||
Conventional Integral Type | FIG602 union | 6000psi(42MPa) | y | y | y | ||
FIG1002 union | 10000psi(70MPa) | y | y | y | |||
FIG1502union | 15000psi(105MPa) | y | y | y | |||
Integral Type for H2S environment | FIG602 union | 5000psi(35MPa) | y | y | y | ||
FIG1002 union | 7500psi(53MPa) | y | y | y | |||
FIG1502 union | 10000psi(70MPa) | y | y | y | |||
Welded Union Type | FIG402 union | 4000psi(28MPa) | y | y | y | ||
Tr union in metric | 5000psi(35MPa) | y | y | y | |||
FIG602 union | 6000psi(42MPa) | y | y | y | |||
FIG1002 union | 10000psi(70MPa) | y | y | y | y | ||
FIG1502 union | 15000psi(105MPa) | y | y | y | |||
Welded Flange Type | 2-1/16"flange | 3000,5000,10000,15000psi(21,35,70,105MPa) | y | ||||
2-9/16"flange | 3000,5000,10000,15000psi(21,35,70,105MPa) | y | y | ||||
3-1/8"flange | 3000,5000psi (21,35MPa) | y | |||||
4-1/16"flange | 3000,5000,10000,15000psi(21,35,70,105MPa) | y | |||||
3-1/16"flange | 10000,15000psi(70,105MPa) | y |
