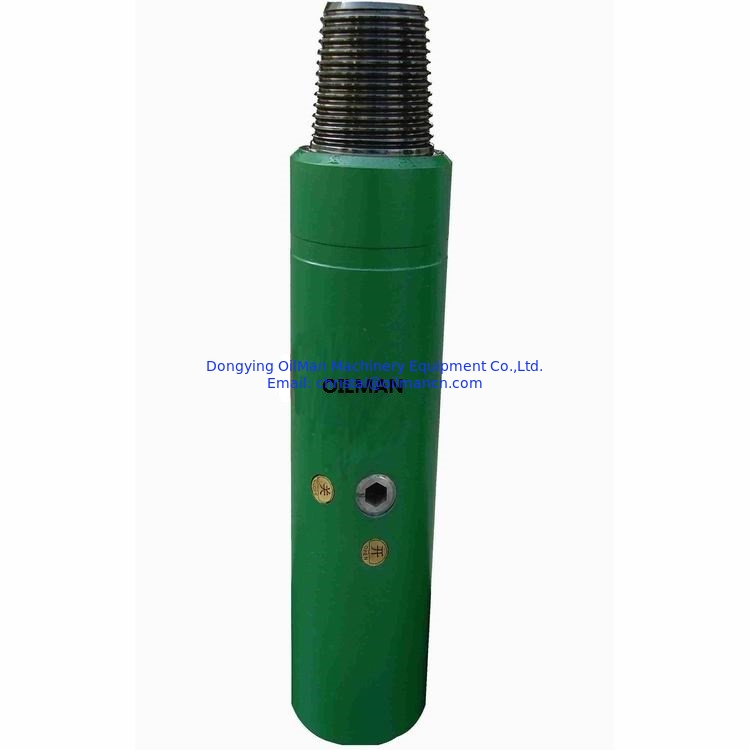

API 7-1 Oilfield Full Opening TIW Safety Valve FOSV For Drill String

API 7-1 Oilfield Full Opening TIW Safety Valve FOSV For Drill String

Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API 7-1
Model Number: All size

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD500-10000/pc
Packaging Details: Export wooden case
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 pieces per month
Get Best Price Contact Now

Detail Information

Product Name: API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve) Keywords: Full Opening Safety Valve
Outside Diameter (mm): 89 - 190 Inside Diameter (mm): 30 - 82.6
Application: Oil Drilling Warranty: One Year
Working Pressure(MPa): 35, 70, 105 Material: Alloy Steel
High Light:

Full Opening TIW Safety Valve

,

TIW Safety Valve Drill String

,

FOSV Drill String Components

Product Description

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)

Product Description

Full Opening Safety Valve (FOSV)



Full Opening Safety Valve (short for FOSV) is a ball type safety valve used to stop flow through the drill string when the drill string is being withdrawn from the well.



Our FOSV is dual body full-opening safety valve, so it does not interfere with the running of tools such as core barrels or survey instruments. It is designed to be stabbed into the top joint of drill pipe or tubing string at the rig floor and closed quickly in case a well kicks.



The ball-type design permits the valve to be compact, easy to handle, and yet have great strength. Standard test pressure is 10,000PSI, but higher pressure ratings are available.



FOSV and operating wrench should be maintained on the rig floor at all times.



Specifications - Full Opening Safety Valve

Model XS105-T44 XS110-T51 XS124-T62 XS127-T62 XS133-T57 XS133-T57 XS134-T62
O.D. φ105 φ110 φ124 φ127 φ133 φ133 φ134
I.D. φ44 φ51 φ62 φ62 φ57 φ57 φ62
Connection 2A10X2A11 210X211 2 7/8 EUE 2 7/8 EUE XT39 4 1/2VAM 310X311
Length 732 726 578 578 773 1173 800



Specifications - Full Opening Safety Valve

Model XS134-T62 XS146-T50.8 XS152-T76 XS152-T76 XS178-T76 XS178-T76.2 XS190-T82.6
O.D. φ134 φ146 φ152 φ152 φ178 φ178 φ190
I.D. φ60 φ50.8 φ76 φ76 φ76 φ76.2 φ82.6
Connection 4 1/2NU NC31 3 1/2 NU 3 1/2 EUE 3 1/2 EUE 4A10X4A11 410X411
Length 580 832 640 617 675 885 895

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)

                                                      Full Opening Safety Valve (FOSV)

Products Show

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)



API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)

Packaging & Shipping

Packing: Wooden case, or customized packing.

Delivery time: Stock or depending on quantity

Delivery: By express, truck, train, air, sea

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)

Company Information

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling and workover rig spare parts, well control system, drill string, solid control equipment, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.

API 7-1 Drill String Full Opening Safety Valve FOSV (TIW Valve)
