Oil Drilling Rig Wellhead Assembly Fig 100 Fig 200 Hammer Union
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API |
| Model Number: | FIG 1502 1002 602 400 402 206 100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pc |
|---|---|
| Price: | USD20-200/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-25 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month |
|
Detail Information |
|||
| Product Name: | FMC Weco Fig 100 Fig 200 Hammer Union For Oil Drilling Rig | Keywords: | Fig100 Hammer Unions |
|---|---|---|---|
| Dimension: | 1" - 4" | Material: | Carbon Steel, Alloy Steel, Stainless Steel |
| Country Of Origin: | China | Working Pressure: | 2000PSI~20000PSI |
| Technics: | Forged | Connection: | Threaded Or Welding |
| High Light: | Wellhead Assembly Hammer Union,Wellhead Assembly Fig 100,fig 200 hammer union |
||
Product Description

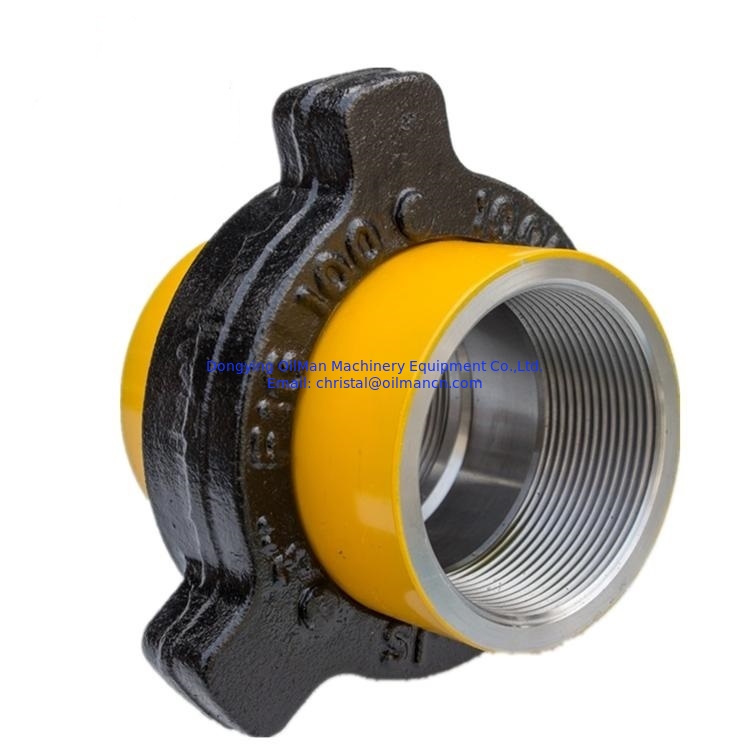

FMC Weco Fig 100 Fig 200 Hammer Union For Oil Drilling Rig
Product Description
High pressure hammer union from Dongying OilMan Machinery Equipment Co.,ltd, importing international advanced technology, is forged with high strength alloy steel, strict head treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI standard and technology indexes conform to API Spec. 6A, the product adopts some end connections of pipeline thread, tubing thread, butt-weld and compress-seal.
FIG 100
| Size | Weight | A | B | C+ | TPI* | Material | ||
| (Inches) | (mm) | (LBS) | Nuts | Sub | ||||
| 2 | 50 | 6.25 | 3.94 | 2.84 | 6.25 | 3 MOD | Steel Forging A105 | |
| 3 | 80 | 13.65 | 4.9 | 4.1 | 7.8 | 3 MOD | ||
| 4 | 100 | 22 | 5.7 | 5.2 | 8.9 | 3 MOD | ||
| 6 | 150 | 45.85 | 6.8 | 7.39 | 13.81 | 3 STD | Steel Casting | Steel Forging A105 |
| 8 | 200 | 66.65 | 7.23 | 9.7 | 16.125 | 3 STD | Steel Casting | Steel Forging A105 |
| *TPI-Threads per inch. | ||||||||
FIG 200, 206
* socket weld and butt weld are also available
| Size | Weight | A | B | C+ | D** | TPI* | Material | ||
| (Inches) | (mm) | (LBS) | Nuts | Sub | |||||
| 1 | 25 | 1.75 | 2.8 | 1.6 | 3.8 | ** | 6 STD | Steel Forging A105 | |
| 2 | 50 | 4.9 | 3.5 | 2.9 | 5.8 | ** | 4 STD | ||
| 3 | 80 | 13.25 | 4.5 | 4.1 | 7.8 | ** | 4 STD | ||
| 4 | 100 | 18.35 | 5.0 | 5.1 | 8.9 | ** | 3 STD | ||
| 6 | 150 | 46 | 6.61 | 7.41 | 12.8 | ** | 3 STD | Steel Casting |
Steel Forging A105 |
| 8 | 200 | 68 | 7.24 | 9.65 | 13.75 | ** | 3 STD | Steel Casting |
Steel Forging A105 |
| *TPI-Threads per inch. **Weld Ends-Consult Factory. | |||||||||
| Working Pressure |
1" | 2" | 3" | 4" | 6" | 8" | |
| FIG 100 | 1000LB | √ | √ | √ | √ | √ | |
| FIG 200 | 2000LB | √ | √ | √ | √ | √ | √ |
| FIG 206 | 2000LB | √ | √ | √ | √ | √ | √ |
| FIG 207 | 2000LB | √ | √ | √ | √ | ||
| FIG 300 | 3000LB | √ | √ | √ | √ | ||
| FIG 400 | 4000LB | √ | √ | √ | √ | ||
| FIG 602 | 6000LB | √ | √ | √ | |||
| FIG 607 | 6000LB | √ | |||||
| FIG 1502 | 15000LB | √ | √ | √ |

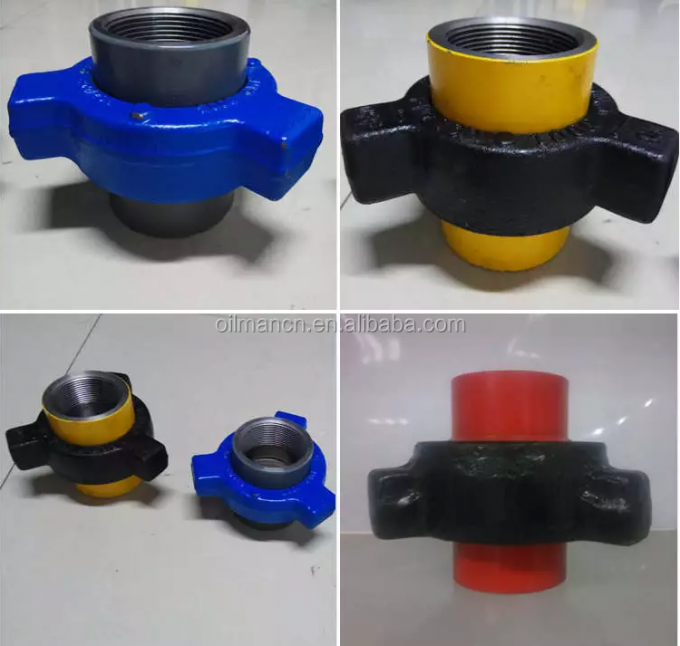

Products Show

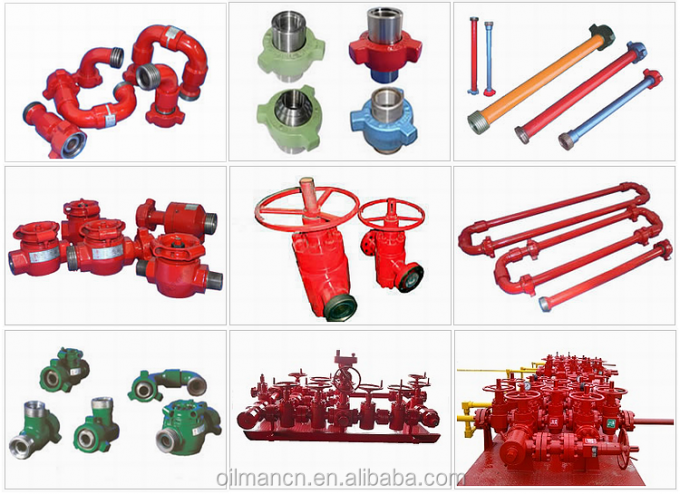

Related Products
