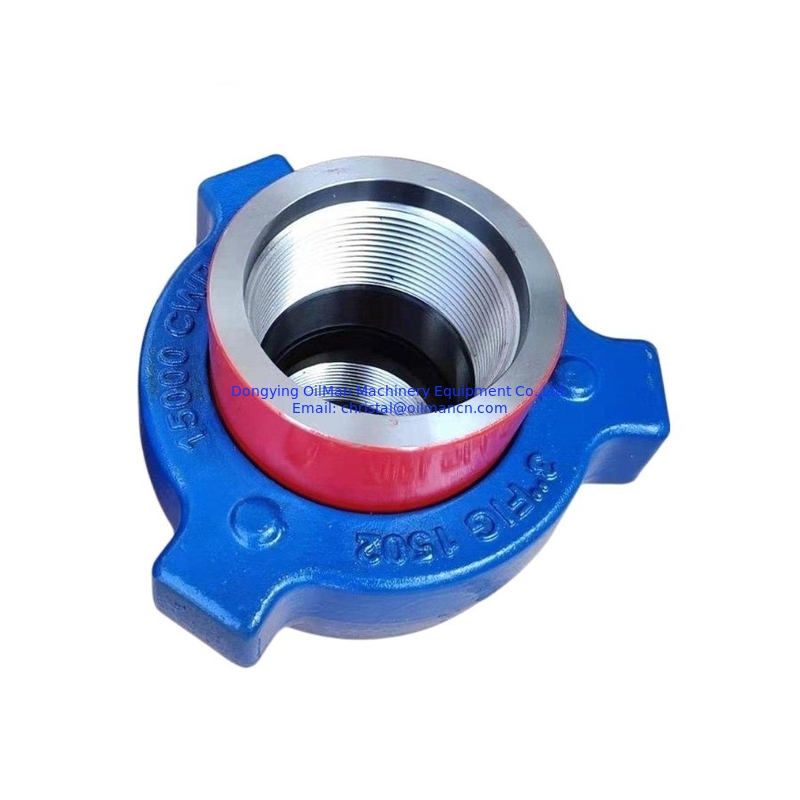

• High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union
  • High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union
  • High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union
  • High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union
High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union

High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union

Product Details:

Place of Origin: China
Certification: API
Model Number: FIG 1502 1002 602 400 402 206 100

Payment & Shipping Terms:

Minimum Order Quantity: 5 pc
Price: USD20-200/pc
Packaging Details: Export Wooden Case
Delivery Time: 15-25 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month
Get Best Price Contact Now

Detail Information

Product Name: High Pressure 2" 3" 4" Weco Fig1502 Hammer Unions For Pipe Fittings Keywords: Weco Fig1502 Hammer Union
Usage: Oil Gas Water Industrial Warranty: One Year
Size: 1" - 4 Working Pressure: 2000PSI~20000PSI
Material: Carbon Steel, Alloy Steel, Stainless Steel Connection: Threaded, Welded, Flange
Highlight:

High Pressure Weco Wellhead Assembly

,

Weco Fig 1502 Hammer Union

,

fig 1502 hammer union

Product Description

High Pressure 2" 3" 4" Weco Fig1502 Hammer Unions For Pipe Fittings





Product Overview of Hammer Unions:



(a).Hammer unions manufactured by our company is mainly used in cementing, crushing, acidifying, test and blocking,Kill line, high pressure manifolds and vehicle-mount system;Underground work is used to connect the various parts of the pipeline construction. Flexible operation, high voltage and other characteristics;
(b).The high pressure wing union designed and manufactured by our company includes thread union and welding union, with specification 1"~12" and cold working pressure 14Mpa-105Mpa (2000psi-15000psi);
(c).High pressure hummer union is marked with apparent connection buckle and pressure rating;
(d).The anti-sulfuretted hydrogen hammer union is workable under acid environment and shows grass green.


Design Features





(a).With precise ball surface and 90 degree conical surface processed by precise machine, Wing hammer union is of high strength and pressure-bearing capacity;
(b).The LP thread, UN thread, EU thread, processed by numerically-controlled machine and imported cutter, has high precision and strong sealing, ensures high press and sealing;
(c).The seal ring is made by imported sizing material. The seal ring can keep strong sealing for joints and avoid joints from corrosion, and prolong the product life;
(d).The wing hammer union which specially applicable to acid environment is designed and manufactured in strict accordance with NACE MR0175;
(e).Wing unions joints are all ACME thread, thus it is easy to assemble, disassemble without any tools and it has self-lock function. The product parts are universal internationally and can be exchanged.





Main Technical Parameters for Hammer Union



Size SMLS ---1"-12"
type fig100, fig200, fig206, fig207, fig300, fig400, fig602, fig1502
Standard API 6A
Material
  • carbon steel: 45#, 20#, Q345 etc.
  • Stainless steel: ASTM SS304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc.
Surface Yellow, Red, Blue, Orange or upon customer’s requirement
Certification ISO 9001:2008
Packing Plywood cases, pallets, or as per your request.
Application Petroleum, chemical, machinery, electric power, shipbuilding, paper making, construction etc
Port of delivery Shanghai port, Tianjin port, Qingdao port etc.





High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union 0





High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union 1



Products Show:


High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union 2

High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union 3

High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union 4

High Pressure Wellhead Assembly , Weco Fig 1502 Hammer Union 5
