API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
Product Details:
| Place of Origin: | China |
| Certification: | API |
| Model Number: | Casing Cutter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD800-5000/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-25 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pieces per month |
|
Detail Information |
|||
| Product Name: | API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter For Tubing Drill Pipe And Casing | Keywords: | Casing Cutter |
|---|---|---|---|
| Material: | High Manganese Steel | Processing Type: | Forging |
Product Description

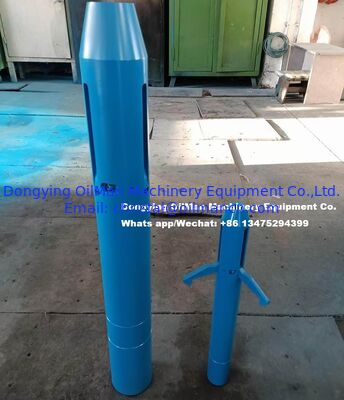

API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing

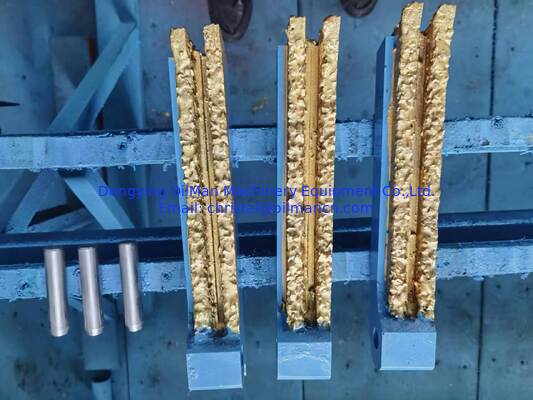

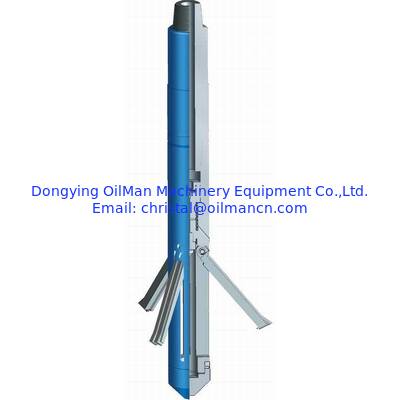

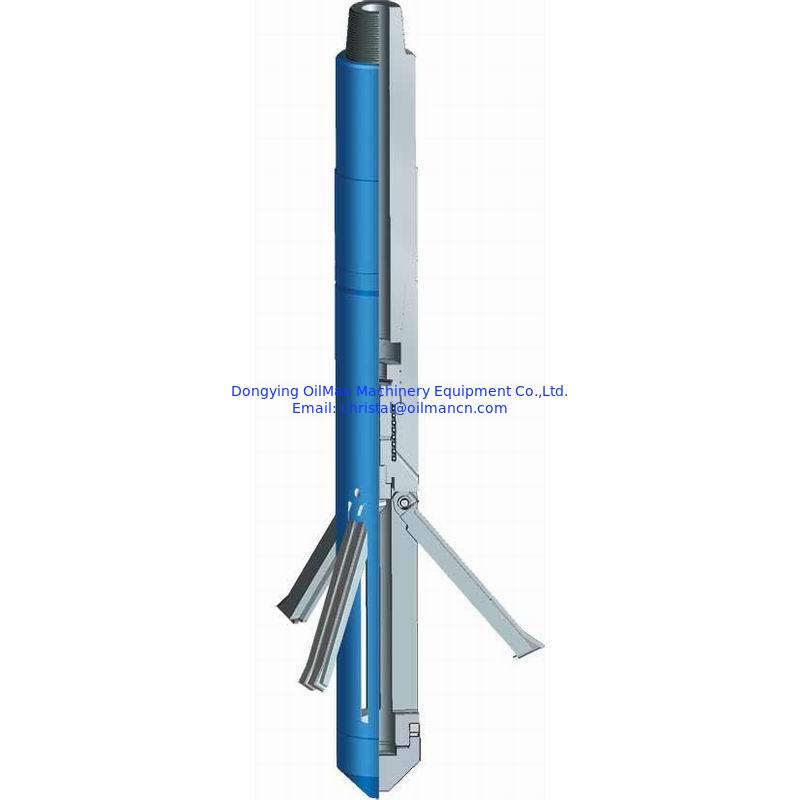

Marine casing cutter is one of tools which cuts the casing internally. It uses water horse power to drive cutters work, it has reasonable structure and convenient maintenance, faster cutting speed. When cutting multi-layer non-concentric casings, it could bear strenuous vibration. Strong cutter arms can extend to 5 times as much as body diameter, so as to get maximum stability performance under various adverse cutting condition( including hard point, decentration, discontinuous cutting etc).
Mechanical internal casing cutter is a tool which is used for cutting downhole fixed(or stuck) pipe from inner of casing, it can work at any place except joint and coupling.
Marine Casing Cutter Technical Parameters
| Model | Body OD | Casing Size | Connection |
| mm (inch) | inch | ||
| GD111 | 111(4-3/8) | 5-1/2~9-5/8 | 2-7/8REG |
| GD146 | 146(5-3/4) | 7~16 | 3-1/2REG |
| GD203 | 203(8) | 9-5/8~30 | NC50 |
| GD238 | 238(9-3/8) | 10-3/4~36 | 6 5/8REG |
| GD298 | 298(11-3/4) | 13-3/8~60 | 6 5/8REG |
Mechanical Internal Casing Cutter Technical Parameters
| Model | Cutter OD | Casing/Tubing Size | Cutting Thickness | Connection |
| mm (inch) | inch | mm | ||
| ND73 | 57(2-15/64) | 2 7/8 | 5.5 | 1.9TBG |
| ND89 | 67(2-41/64) | 3 1/2 | 6.5 | 1.9TBG |
| ND102 | 85(3-11/32) | 4 | 5.7~6.7 | 2-3/8TBG |
| ND114 | 89(3-1/2) | 4 1/2 | 7.4~10.9 | 2-3/8TBG |
| ND127 | 102(4-1/64) | 5 | 5.59~11 | 2-7/8REG |
| ND140 | 120(4-23/32) | 5 1/2 | 7~9.2 | NC31 |
| ND168 | 149(5-7/8) | 6 5/8 | 7.3~8.9 | NC38 |
| ND178 | 146 (5-3/4) | 7 | 5.87~13.72 | 4-1/2REG |
| ND244 | 212(8-11/32) | 9 5/8 | 7.92~13.84 | 6-5/8REG |
| ND340 | 295(11-39/64) | 11 3/8 | 8.38~12.19 | 6-5/8REG |
