2F3R 5F6R Model F Plunger Type Drill Pipe Float Valves With Repair Kit
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API |
| Model Number: | Model G, Model F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD100-2000/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Product Name: | 2F3R 5F6R Model F Plunger Type Drill Pipe Float Valves With Repair Kit | Keywords: | Drill Pipe Float Valve |
|---|---|---|---|
| Usage: | Oil Well Drilling | Warranty: | One Year |
| Material: | AISI 4145H | Diameter Of Valve: | 1 12/32" - 5 11/16" |
| High Light: | Plunger Type Drill Pipe Float Valves,Oilfield Drill Pipe Float Valves |
||
Product Description
2F3R 5F6R Model F Plunger Type Drill Pipe Float Valves With Repair Kit
Drill Pipe Float Valve is normally installed in a standard bore-back of the bit sub, to provide fluid flow control at the bottom of the drill stem. It also prevents backflow of cuttings from plugging the drill bit jets while making connections.
Float valve is one of necessary tool for oil drilling, it consists of float valve sub and float valve, The main function are to prevent drill cuttings come into mud when connecting each joint and the bit bore block caused by back flow of silt. When the well blowout or kick, the valve cover of float valve turn off the bore automatically, it will prevent well blowout accident. The working pressure of float valve is supposed to be 5000psi or 10000psi.
Model F Plunger Type Float Valve 1F2R-5F6R for Assembly Model F

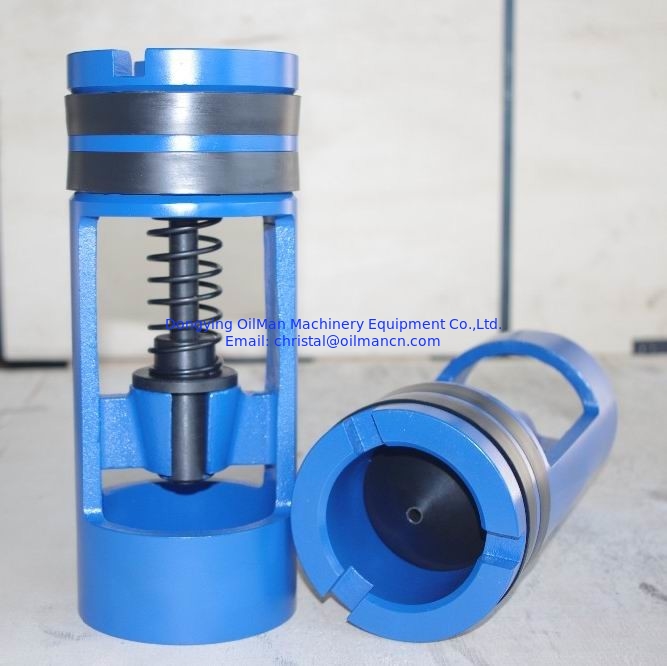

The Model F Float Valve is a plunger-type float valve that provides a positive instantaneous shut off,providing constant fluid control while drilling,The model F is a reliable and the most economical selection under standard drilling operations.
Model G Flapper Type Float Valve 2F3R-5F6R for Assembly Model G
The Model G is a flapper-type float valve that,when opened, offers unrestricted bore through the float valve.The uniquely designed flapper closes rapidly to prevent cutting from entering the drill string when circulation stops and also assists primary BOP equipment in maintaining internal pressure control.
Model FA Plunger Type Float Valve 1F2R-5F6R for Assembly Model FA
The Model FA Float Valve has a special port running through the plunger of the float valve,This valve is used when monitoring the bit head for gas pressure and allowing differential pressure measuring when required .The port also permits partial automatic fill during run
Model GA Flapper Type Float Valve 2F3R-5F6R for Assembly Model GA
The Model GA Float Valve is indistinguishable from the Model G with the exception of a tungsten-cabide insert in the flapper valve,The insert has a quarter-inch orifice through the center that allows for differential pressure monitoring .The port also permits partial automatic fill during run in .
Technical Specification
| Type | Dia. of Valve Assembly mm(inch) | Length Of Valve Assembly mm(inch) | Dia. Of Float Recess mm(inch) | Sub Box | Other Popular Connections | ||
| Connection API | Depth Of Recess mm(inch) | Connection API | Depth Of Recess mm(inch) | ||||
| 1R | 42.1(1-21/32) | 149.2(5-7/8) | 42.9(1-11/16) | 2-3/8Reg. | 231.8(9-1/8) | NC23 | 231.8(9-1/8) |
| 2F-3R | 61.1(2-13/32) | 165.1(6-1/2) | 61.9(2-7/16) | 3-1/2Reg. | 266.7(10-1/2) | NC31 | 260.35(10-1/4) |
| 3-1/2 F | 79.4(3-1/8) | 254(10) | 80.2(3-5/32) | NC38 | 362.0(14-1/4) | ||
| 4R | 88.1(3-15/32) | 211.1(8-5/16) | 88.9(3-1/2) | 4-1/2Reg. | 325.4(12-13/16) | NC44 | 331.8(13-1/16) |
| 5R | 98.4(3-7/8) | 247..7(9-3/4) | 99.2(3-29/32) | 5-1/2Reg. | 374.7(14-3/4) | NC50 | 368.3(14-1/2) |
| 5F-6R | 121.4(4-25/32) | 298.5(11-3/4) | 122.2(4-13/16) | 6-5/8Reg.. | 431(17) | 5-1/2IF | 431.8(17) |
We make a complete line of Float Valves and Repair Kits to accommodate a wide range of drilling situations and operating conditions.
Spare Parts for Model G Type Drill Pipe Float Valve include: 1.Small Bumper 2.Spring 3.Pin 4.Large Bumper 5.Shock Absorber 6.Seal Retainer 7.Flapper Valve 8.Seal 9.Side Seal 10.Cage
Spare Parts for Model F Type Drill Pipe Float Valve include: 1.Valve Seal Disc 2.Plunger 3.Side Seal 4.Valve Seal 5.Guide 6.Spring 7.Cage
If any needs, pls contact us freely:
