MI-PT (MI Swaco) Mongoose Composite Shale Shaker Screens Mesh For Shale Shaker
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API |
| Model Number: | Brandt, M-I SWACO, KEMTRON etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | USD22-80/piece |
| Packaging Details: | First into carton, then into wooden box or containers |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |
|
Detail Information |
|||
| Product Name: | MI-PT (MI Swaco) Mongoose Composite Shale Shaker Screens Mesh For Shale Shaker | Keywords: | Mongoose Shale Shaker Screens |
|---|---|---|---|
| Usage: | Solid Control Equipment | Material: | Stainless Steel 304/316 |
| Screen Mesh: | 20-325mesh | Dimension: | 1165x585mm Or Customized |
| Layer: | 2-3 Layers | Function: | Screening\separation\sieving\Grading |
| High Light: | Mongoose Composite Shale Shaker Screens Mesh,Stainless Steel Shale Shaker Screens,Solids Control Mi Swaco Shaker Screens |
||
Product Description

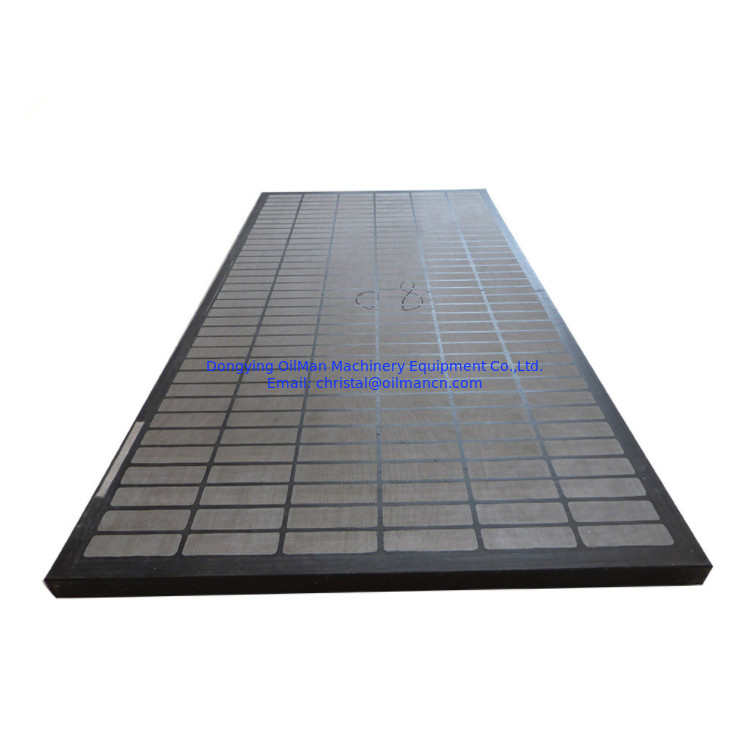

MI-PT (MI Swaco) Mongoose Composite Shale Shaker Screens Mesh For Shale Shaker
Mongoose series screen is spare part for Mongoose series shale shaker from M-I Swaco. There are common pre-tensioned steel frame screen and composite frame screen. Composite frame screen have longer service life, better appearance, and convenience on operaion. Both steel frame and composite frame screen have main parameters as below.
1. is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.
2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.
3.High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole, greatly enhance the tolerable flow.
4.Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing.
5.Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.
6. Excellent high-strength composite frames enhance corrosion resistance. Have good shock absorption and extend working life of screen.
| Swaco Mongoose Series Screen | |
| Mesh | API20---API450 |
| Dimension | Length:1165mm (45 9/10”) |
| Width: 585mm (23”) | |
| Weight | Composite frame: 12kg (26.4lb) |
| Screen layer | 2 or 3 Layers |
| Wire mesh material | S.S304 ,S.S316 (Customizable) |
| Frame material | Carbon steel, Composite material |
If any needs, pls contact us freely:
