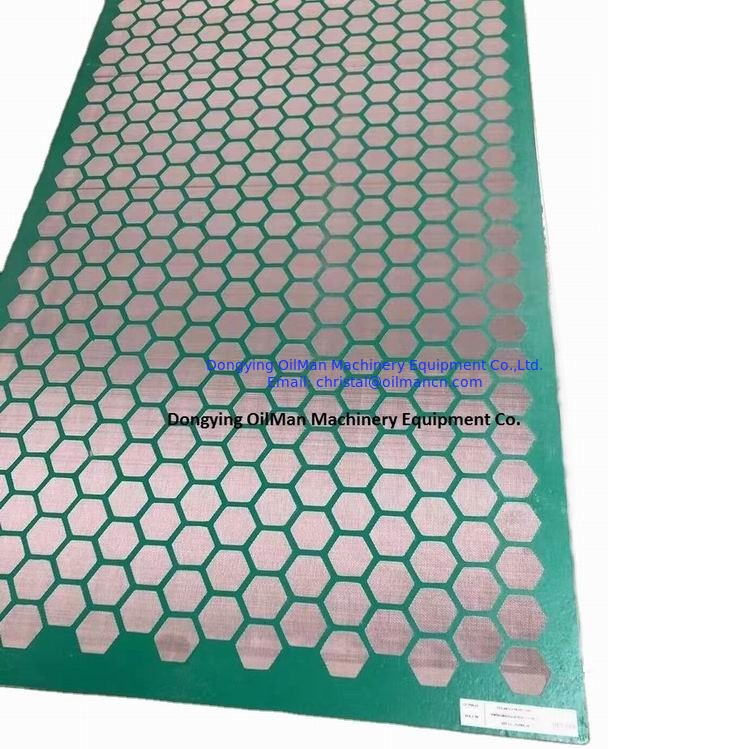

API RP 13C Drilling Mud Solid Control Stainless Steel Composite Frame Flat Wave Type Shale Shaker Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API |
| Model Number: | Brandt, M-I SWACO, KEMTRON etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | USD22-80/piece |
| Packaging Details: | First into carton, then into wooden box or containers |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |
|
Detail Information |
|||
| Product Name: | API RP 13C Drilling Mud Solid Control Stainless Steel Composite Frame Flat Wave Type Shale Shaker Screen | Keywords: | Shale Shaker Screens |
|---|---|---|---|
| Usage: | Solid Control Equipment | Material: | Stainless Steel 304/316 |
| Screen Mesh: | 20-325mesh | Dimension: | 1050x585mm Or Customized |
| Layer: | 2-3 Layers | Function: | Screening\separation\sieving\Grading |
| High Light: | Stainless Steel Composite Frame,Flat Wave Type Shale Shaker Screen,Drilling Mud Shaker Screen Mesh |
||
Product Description
API RP 13C Drilling Mud Solid Control Stainless Steel Composite Frame Flat Wave Type Shale Shaker Screen
1. Steel Frame:
Constructed with two or three 304 or 316 stainless steel wire cloth layers with a steel backing plate and steel frame combined together. Because of different mesh size and hole size, get a better filtering effect.
The bottom high strength steel frame, supporting bar with the moderate tension screen cloth, combined together. Infinitely enhance the screen intensity and endurance, get a better filtering effective. Mesh sizes ranging from 20 to 325. The whole cloth is divided into independent small surfaces, prevent the part excessive expansive damaged, with a special rubber plug together to repair damage, can save the time to replace the screen, Increase the efficiency and reduce the cost.
2. Compatible Frame:
Composite Frame Shaker Screen is made by polyurethane material frame with two or three layers 304 or 316 Stainless steel wire cloth, Main feature as follows:
High strength plastic frame and moderate tension screen cloth that from a reliable whole, greatly enhance the tolerable.
The screen is divided into several independent small cloths to pervent excessive expansion of local damage.At the same time, With a special rubber plug to repair damage, it can save time and reduce use-cost.
Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine half for changing.
Excellent polyurethane material frame enhance corrosion resistance, have a good stock absorption and ectend working life of screen.
| Brandt Series Screen | |
| Mesh | API20---API325 |
| Dimension | Length:1251mm (49 1/5”) |
| Width: 635mm (24 4/5”) | |
| Weight | Steel frame: 13kg (28.6lb) |
| Composite frame: 12kg (26.4lb) | |
| Screen layer | 2 or 3 Layers |
| Wire mesh material | S.S304 ,S.S316 (Customizable) |
| Frame material | Carbon steel, Composite material |
| Swaco Mongoose Series Screen | |
| Mesh | API20---API325 |
| Dimension | Length:1165mm (45 9/10”) |
| Width: 585mm (23”) | |
| Weight | Steel frame: 13kg (28.6lb) |
| Composite frame: 12kg (26.4lb) | |
| Screen layer | 2 or 3 Layers |
| Wire mesh material | S.S304 ,S.S316 (Customizable) |
| Frame material | Carbon steel, Composite material |
