LSB Vertical Centrifugal Slurry Pump high wearable cast iron
|Place of Origin:||China|
|Model Number:||LSB Series|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Export Wooden Case|
|Delivery Time:||15-30 days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per month|
|Condition:||New||Product Name:||Solid Control Equipment Vertical Centrifugal Slurry Pump LSB Vertical Sand Pump|
|Keywords:||Vertical Slurry Pump, Vertical Sand Pump||Application:||Drilling Mud Solid Control|
|Warranty:||One Year||Capacity:||70-200 M3/h|
|Speed:||1480 Rpm||Motor Power:||3-45 Kw|
Vertical Centrifugal Slurry Pump,
LSB Centrifugal Slurry Pump
Solid Control Equipment Vertical Centrifugal Slurry Pump LSB Vertical Sand Pump
LSB Vertical Sand Pump Descriptions:

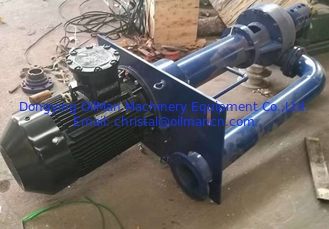

LSB vertical sand pump,which is also called vertical centrifugal slurry pump,is applicable to transmission of abrasive slurry.Submerged in liquid,the pump operates in a pond or pit.The level of slurry circulated in a slurry pond shall be not lower than the center of pump outlet but not higher than 1/3 of the height of the lower bearing housing,in order to ensure the long-term,stable and reliable operation of the pump.The LSB vertical sand pump is widely used in such fields as petroleum drilling,metallurgy,mine,coal,electric power and building materials,etc.With immersion structure,the LSB vertical sand pump is submerged in a slurry pond for operation. Its strainer, pump body,impeller,guard plate and middle section,etc.are partly submerged in the slurry pond.A wearing machine seal is used to prevent slurry from entering bearing housing.The impeller is of semiclosed type.The mounting plate supports the pump via bearing housing and fixes the pump.The pump and the motor are integrated via the motor cabinet which is driven in a direct drive manner.The split mounting board can be easily erected on the steel-frame foundation or concrete foundation.
No leakage: Used combined seal relying mainly on mechanical seal and packing subsidiary. The service life is 6 times as normal mechanical seal.
High efficiency: Impller and case have a streamlined design.
Long serivce life: The flow parts are made of high wearable cast iron.
No jam: The impeller has wide flow pass.
Small area: Vertical structure.
Technical parameter of vertical sand pump:
|Shaft power||Motor power|
Complete soilds control system we supply:
A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
