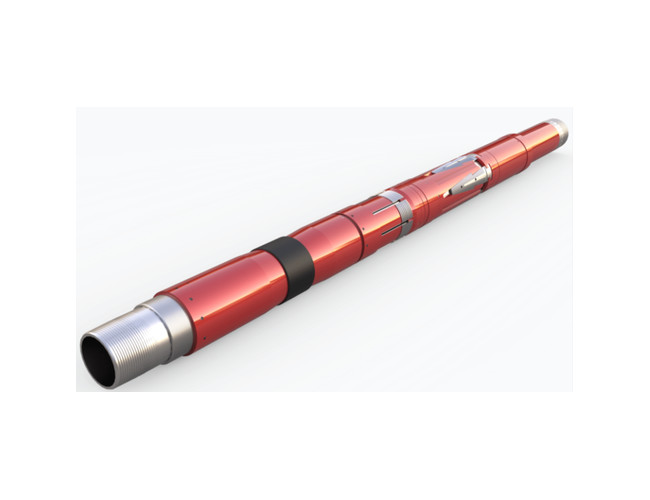

API Standard Mechanical Liner Hanger for hydraulic transmission

API Standard Mechanical Liner Hanger for hydraulic transmission

Product Details:

Place of Origin: China
Certification: API
Model Number: Hydraulic-Mechnical

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD2000-5000/pc
Packaging Details: Export Wooden Case or Pallet
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 pieces per month
Get Best Price Chat Now

Detail Information

Product Name: API Standard Hydraulic-Mechnical Liner Hanger 5", 5 1/2", 7", 9 5/8", 13 3/8" Keywords: Liner Hanger
Application: Oil Drilling Size: 5" - 13 3/8"
Highlight:

API Standard Mechanical Liner Hanger

,

Hydraulic Transmission Mechanical Liner Hanger

Product Description

API Standard Hydraulic-Mechnical Liner Hanger 5", 5 1/2", 7", 9 5/8", 13 3/8"



Description of liner hanger:

Liner hanger is mainly through the hydraulic transmission to achieve the Liner Hanger, which is widely used in the technology of oil and gas well and geothermal well.

Features

1. Suitable for casing sidetracking drilling, deepening and workover operation.
2. Unique liquid cylinder design to ensure that the base is more reliable, the liner hanger could be used for different well conditions..
3. Cementing Rubber plug, ball seat are designed with a locking mechanism, the bump pressure can prevent leakage and floating.
4. With the proposed sealing core to the wellhead.
5. Reverse button operation is simple, as long as the pressure will be fed into the 3~5 tons of drilling tools, are turning to be easily inverted button.


Technical Parameters -- Liner Hanger



Casing Size Tool
OD up OD down Weight OD
in in Lb/ft in
7 4-1/2 26.3~32.0 5.969
7 5 26.3~32.0 5.969
9-5/8 5-1/2 40.0~47.0 8.469
9-5/8 6-5/8 40.0~47.0 8.469
9-5/8 7 40.0~47.0 8.469
13-3/8 9-5/8 54.5~68.0 12.125
13-3/8 10-3/4 54.5~68.0

12.125



API Standard Mechanical Liner Hanger for hydraulic transmission 0

API Standard Mechanical Liner Hanger for hydraulic transmission 1
