Oilfield Cementing Tools , H2S Resistant Mechanical Set Liner Hanger
Product Details:
| Place of Origin: | China |
| Certification: | API |
| Model Number: | Hydraulic-Mechnical |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD2000-5000/pc |
| Packaging Details: | Export Wooden Case or Pallet |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pieces per month |
|
Detail Information |
|||
| Product Name: | API Oilfield H2S Resistant Mechanical-Set Liner Hanger Systems For Drilling | Keywords: | Liner Hanger |
|---|---|---|---|
| Application: | Oil Drilling | Size: | 5" - 13 3/8" |
| Highlight: | Oilfield Cementing Tools,H2S Resistant Oilfield Cementing Tools,H2S Resistant Mechanical Set Liner Hanger |
||
Product Description

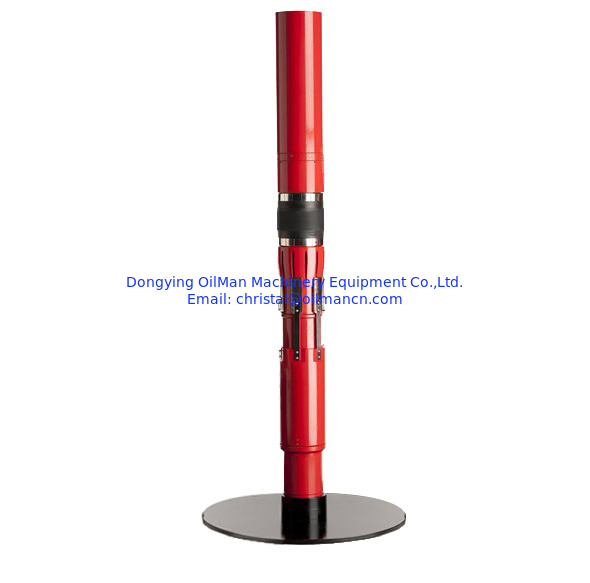

API Oilfield H2S Resistant Mechanical-Set Liner Hanger Systems For Drilling
Description of liner hanger:
Liner hanger is mainly through the hydraulic transmission to achieve the Liner Hanger, which is widely used in the technology of oil and gas well and geothermal well.
Features
1.Suitable for casing sidetracking drilling, deepening and workover operation.
2.Unique liquid cylinder design to ensure that the base is more reliable, the liner hanger could be used for different well conditions..
3.Cementing Rubber plug, ball seat are designed with a locking mechanism, the bump pressure can prevent leakage and floating.
4.With the proposed sealing core to the wellhead.
5.Reverse button operation is simple, as long as the pressure will be fed into the 3~5 tons of drilling tools, are turning to be easily inverted button.
Technical Parameters -- Liner Hanger
| Casing Size | Tool | ||
| OD up | OD down | Weight | OD |
| in | in | Lb/ft | in |
| 7 | 4-1/2 | 26.3~32.0 | 5.969 |
| 7 | 5 | 26.3~32.0 | 5.969 |
| 9-5/8 | 5-1/2 | 40.0~47.0 | 8.469 |
| 9-5/8 | 6-5/8 | 40.0~47.0 | 8.469 |
| 9-5/8 | 7 | 40.0~47.0 | 8.469 |
| 13-3/8 | 9-5/8 | 54.5~68.0 | 12.125 |
| 13-3/8 | 10-3/4 | 54.5~68.0 |
12.125 |
If any needs, pls contact us freely:
