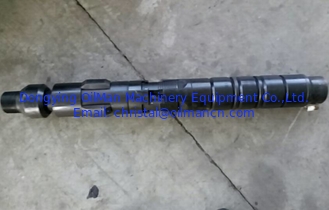

Alloy Steel Oilfield Downhole Tools Expandable Packer Double piston
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API |
| Model Number: | Y Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD800-2500/set |
| Packaging Details: | Export Wooden Case or Pallet |
| Delivery Time: | 7-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Condition: | New | Product Name: | Oilfield Downhole Tools Expandable Casing Packer, Oil Well Drilling Packer |
|---|---|---|---|
| Keywords: | Oil Well Drilling Packer | Application: | Oil Well Drilling |
| Warranty: | One Year | Material: | Alloy Steel |
| High Light: | Oilfield Downhole Tools Expandable Packer,Alloy Steel Oilfield Downhole Tools |
||
Product Description
Oilfield Downhole Tools Expandable Casing Packer, Oil Well Drilling Packer
1.Structure
Oil well drilling packing mainly consists well washing mechanism, sealing mechanism, setting mechanism, locking mechanism and releasing
mechanism.
2. working principle
Set: Landing the packer to the reserved position in the well, pressure out in tubing, the piston moves up, and the pin is cut off, then the lock sets move up and the element is compressed. At the same time, the lock set ang lock ring lock each other, so that the element can not be recycled. During the process, seal the tubing annulus, the setting is completed.
Release: Lift the string, cut off the pin with the friction between element and the casing, the lock ring is without limit. The lock ring and lock set move down and release the stuck under the element back strech, and the packer is released.
Wash well: Increase pressure by 0.5 MPa to wash the well.
Feature:
1.Double-piston, low-pressure set explored, good sealing
2.Highly temperature -resistance and pressure-resistance glue tubing explored, stable, widely used.
3.Reasonable-design, high-pressure, overturn well-flushing with large emission
4.Straight pull release, easy to operate and stable
Technical Parameters:
| Model | O.D (mm) | I.D (mm) | Work temperature (℃) | Work pressure (MPa) | Length (mm) | Connection thread |
| Y211-94×48-120/35 | 94 | 48 | 120 | 35 | 1523 | B&P:2-3/8 TBG |
| Y211-114×55-120/35 | 114 | 55 | 120 | 35 | 1776 | B&P:2-7/8 TBG |
| Y211-118×50-120/35 | 118 | 50 | 120 | 35 | 1560 | B&P:2-7/8 TBG |
| style | Length |
Maximum diameter mm |
Min diameter mm |
Inflation pressure M Pa |
Releasing pressure MPa |
Working pressure ≤M P a |
Suitable tube diameter |
the connecting thread of both ends |
| mm | mm | |||||||
| K344-140 | 1145 | 140 | 62 | 0.4~0.5 | 25 | 157~159 | 2 7/8TBG |
Products Show
