Product Details:

Place of Origin: China
Certification: API
Model Number: ZS Model

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD5000-50000/piece
Packaging Details: By Bulk In Container
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Condition: New Product Name: Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker
Keywords: Shale Shaker Application: Oil Well Drilling
Warranty: One Year Material: Alloy Steel
Processing Type: Forging Color: Orange, Green, Red Or As Customer Requirement

Product Description

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker



                                      Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 0

Brief introduction about shale shaker

The shale shakers were solely designed and manufactured by our company but with the advantages of same international well-known products,containing more than one patents.

The shale shakers being provided with high vibration intensity , adjustable-pitch ,compact, reliable ,behavior and cost effective ,is known as a competitive product in the international market.

1. Usage and Applicability

Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker screens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next separating equipment.

the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.

2. Structure and Operating Principle

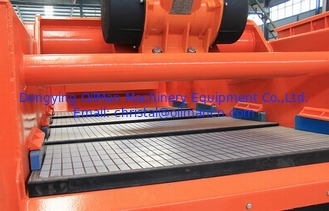

The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.

Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 1

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 2

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 3

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 4

3.Main Technical Parameters

Model ZS594 ZS852 ZS703 ZS853
Deck Number Single Deck
Vibrating Mode Linear Motion
Motor Power 2×1.72KW 2×1.5KW 2x1.72KW 2x1.72KW
Vibrating Strength ≤7.5G(Adjustable)
Double Amplitude 6.0~7.2mm
Treating Capacity 140m3/h (615GPM) 80m3/h (350GPM) 120m3/h (528GPM) 140m3/h (615GPM)
Deck Adjustment -1°~+5° -1°~+3° -1°~+5° -1°~+5°
Power 380V/50HZ, 460V/60HZ or Customized
Shaker.Screen 4 Panel 2.72m2 2 Panel 2.1m2 3 panel 2.6m2 3 panel 3.2m2
Weir Height 895mm Buffer Box Top Type:1060mm Back Type:895mm
Starter Magnetic force starter
Decibels <85db
Weight 1700kg 1200kg 1390kg 1650kg
Dimension(Top Feeder) N/A 1975x1884x1448 2403x1884x1448 N/A
Dimension (Back Feeder) 2937x2012x1413 2283x1884x1340 2750x1884x1340 3180x1884x1340
Remarks Treating capacity test from mud:1.2g/cm3density & viscosity 45s & API40 screen for Single deck.

Products Show:

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 5

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 6

Packaging & Shipping:

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 7

Complete soilds control system we supply:



A complete solid control system,including Shale Shaker, Mud Cleaner ,Desander ,Desilter, Centrifuge, Cutting Dryer ,Agitator, Mixing Hopper, Flare Igniter, Various Tanks, Pumps, Degassers etc .

Oilfield Drilling Rig Parts Shale Shaker,Drilling Mud Solids Control Equipment Shale Shaker 8
