API Manual Tong Line Pull System with Torque Sensor and Loading Cell
Product Details:
| Place of Origin: | China |
| Certification: | API |
| Model Number: | Tong Line Pull System |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1800-3000/set |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Product Name: | API Manual Tong Line Pull System With Torque Sensor And Loading Cell | Keywords: | Tong Line Pull System |
|---|---|---|---|
| Usage: | Indicate Make-up Or Break-out Torque For Oilfield Tubular | Capacity: | 10,000 - 30,000 Pounds |
Product Description

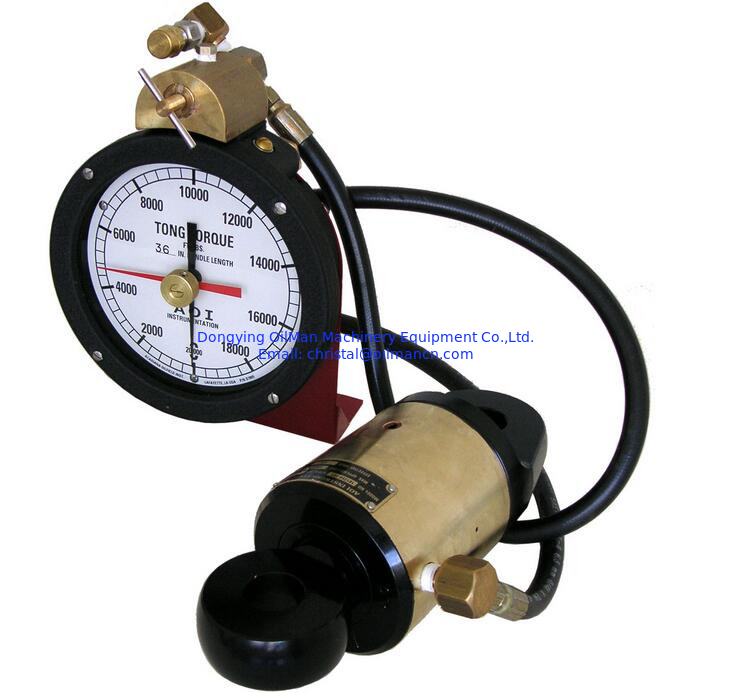

API Manual Tong Line Pull System with Torque Sensor and Loading Cell
Each tong torque system consists of a tension load cell that converts line pull into a hydraulic pressure signal, which it sends to a pressure-sensing gauge through an interconnecting Hydraulic Hose. Each system also includes mounting hardware.
Features:
1) Systems designed and build for the rugged requirements of the oil filled
2) Load Cell's are designed to ensure a long service life with minimum maintenance
3) 6" Fluid filled gauge has years of proven reliability and ease of maintenance
4) Target pointer on gauge helps operator maintain accurate torque
We are also a proud member of the China Pressure Gauge Association. With more than 20 years experience,our company specialized in the YK series of Mud Pump Pressure gauges and other oilfield related instruments. we have a strong network that allows us the ability to design and customize. We currently produce over 30 different styles of instruments for various industries that include the oil exploration, chemical industry, chemical fiber industry, iron and steel industry, metallurgical industry, power generation plants, scientific research and so on.we never stop upgrading our technology. We are continually developing new products to meet the more customers'need.
Main Technical Parameters of Tubing Torque Sensor:
|
model
|
Supply voltage | Measurement range | Control range | Detection accuracy |
Ambient temperature |
Environmental humidity |
volume | weight |
| NKY-Y203 |
220Vac+15% 50~60Hz |
XQ140/20--- 20300N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-Y123 |
220Vac+15% 50~60Hz |
XQ140/12--- 12500N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-Y732 |
220Vac+15% 50~60Hz |
XQ114/6--- 7300N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-Y422 |
220Vac+15% 50~60Hz |
XQ89/3-- 4300N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
Main Technical Parameters of casing torque sensor:
|
model
|
Supply voltage | Measurement range | Control range | Detection accuracy |
Ambient temperature |
Environmental humidity |
volume | weight |
| NKY-T776 |
220Vac+15% 50~60Hz |
TQ508/70Y--- 77600N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-TB373Y |
220Vac+15% 50~60Hz |
TB365/35Y--- 37700N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-T363Y |
220Vac+15% 50~60Hz |
TQ340/35Y--- 36800N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-T363 |
220Vac+15% 50~60Hz |
TQ340/35-- 36800N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-T353 |
220Vac+15% 50~60Hz |
TQ340/35Y--35200 | May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-T243 |
220Vac+15% 50~60Hz |
TQ245/20Y--24300 | May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
Main Technical Parameters of drill pipe :
|
model
|
Supply voltage | Measurement range | Control range | Detection accuracy |
Ambient temperature |
Environmental humidity |
volume | weight |
| C.NKY-Z263 |
220Vac+15% 50~60Hz |
ZQ127/25Y--- 26N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-Z124 |
220Vac+15% 50~60Hz |
ZQ203/125--- 120N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
| NKY-Z104Z |
220Vac+15% 50~60Hz |
ZQ203/100--- 100N.M |
May be set | ≤2.5% | -20°C~+65°C | 10%-80%RH |
580*450 *300
|
50KG |
