Product Details:

Place of Origin: China
Certification: API
Model Number: F1600,F1300,F1000,F800,F500

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD20-60/pc
Packaging Details: Export wooden case
Delivery Time: 15-25 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 pieces per month
Get Best Price Contact Now

Detail Information

Product Name: Olifield Drilling Mud Pump Piston Rubber And Piston Assembly Keywords: Mud Pump Piston Rubber
Application: Oil Drilling Rig Country Of Origin: China
High Light:

Rubber Mud Pump Piston Assembly

,

Oilfield Drilling Mud Pump Piston

,

Rubber Drilling Mud Pump Piston

Product Description

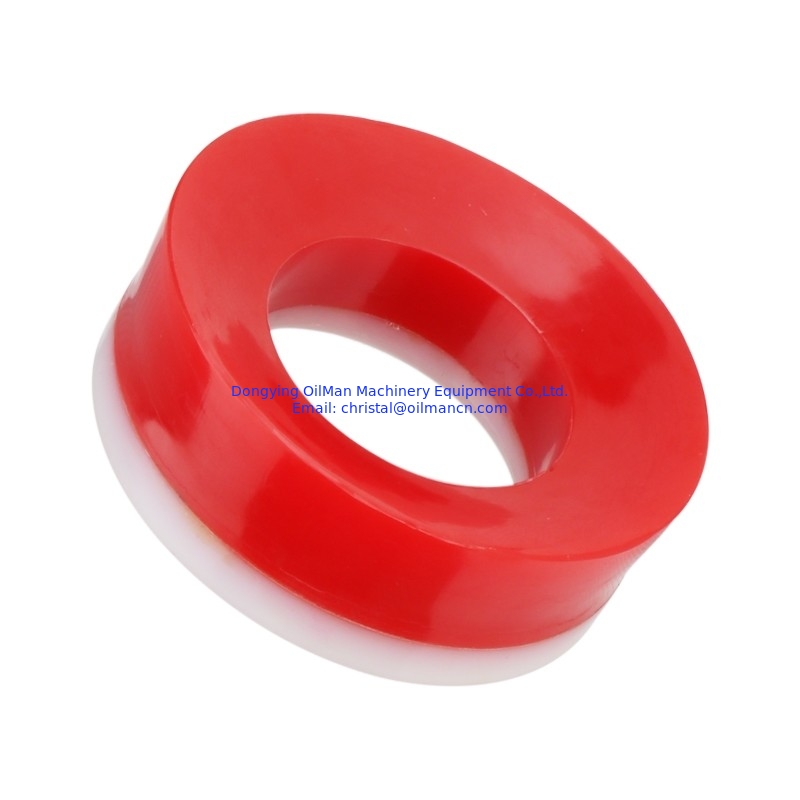

Olifield Drilling Mud Pump Piston Rubber And Piston Assembly



The mud pump piston assembly is one of the main parts of the hydraulic end system of the mud pump.The discharge pressure of the mud pump is generated by reciprocating linear motion of the piston assembly in the piston.Piston assembly by the piston core, rubber, spring, pressure plate, etc.
Our mud pump pistons are strictly manufactured according to API Standard, which with a high performance in various well drilling environment. The hub is forged from high quality steel, and the piston rubber is made from specially formulated compounds which are of heat, oil and water resistance. It is interchangeable with all other API standard designed pistons. And the valve rubber is easy to install.

Mud Pump Piston Model
BOMCO F-500 F-800 F-1000 F-1300 F-1600 F-1600HL F-1600L F-2200HL
Hong Hua HHF-500 HHF-800 HHF-1300 HHF-1600 3NB-1600F 5NB-1600 5NB-2400
EMSCO F-500 F-800 F-1000 F-1300 F-1600 FD-1000 FC-2200 FB-1300
Gardner Denver PAH P7 P8/9 P10/11 PXL PX-11 PZL PY-FXD
National 7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-P-200 14-P-220 N-1000/1300
Oilwell A-850-PT A-1100-PT A-1400-PT A-1700-PT
TSC WF-500 WF-800 WF-1000 WF-1300 WF-1600 WF-2000 WF-2200
IDECO T-500 T-800 T-1000 T-1300 T-1600

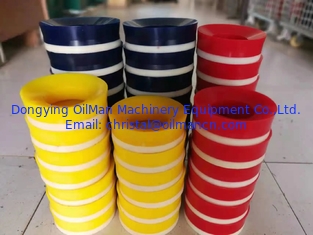

Pistons with Replacement Rubbers
This kind pistons are conform with API Standard and has very good performance in various drilling conditions. The piston hub is processed with premium forging steel. The piston rubber is made from specially formulated compounds which are resistant to the effects of heat, oil and water. The multi-ply fabric reinforced backings used in the production of the piston rubbers has high tensile strength, chemical products resistance, wear resistance and has long service life. This kind of piston can be interchangeable with other pistons that manufactured according to API Standard.



Bonded Polyurethane Pistons
This kind piston is to vulcanize the piston rubber on the piston hub directly, no need to use plates and snap rings, it suite to all kinds of mud especially suit to used on high pressure jet drilling and ceramic liners with long service life. It can be interchangeable with other pistons that manufactured according to API Standard.
Bonded Rubber Pistons
This kind of piston is made of special nitrile rubber which has a good performance of heat resistance, oil resistance, water resistance, suite to use in the working condition of high pressure, long stroke etc, especially suite to use on the liner that has a certain abrasion.
Piston Replacements
Supply a full line of piston replacements including piston hubs, plates, sanp rings and piston rubbers.
