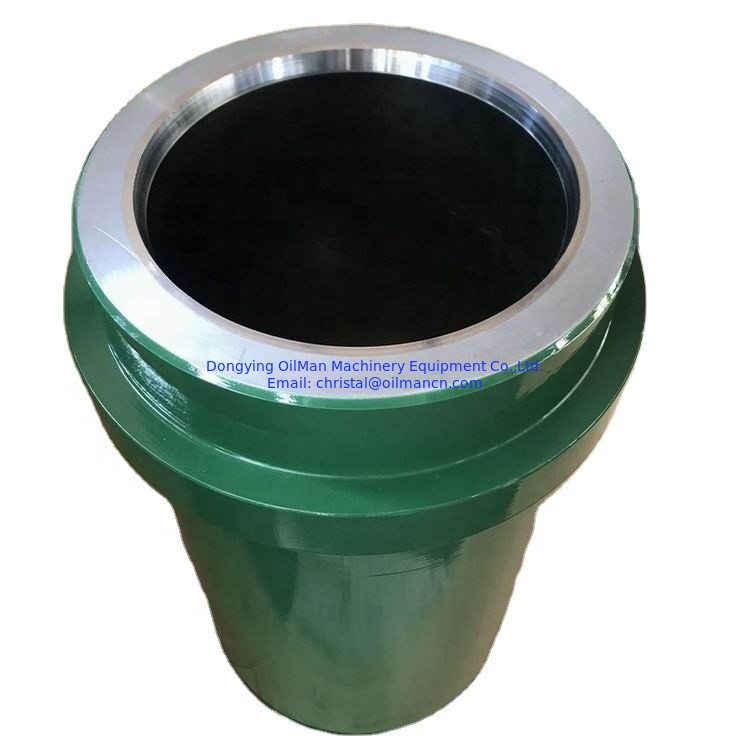

API Mud Pump Bi-Metal Cylinder Liner For F800/F1000/F1300/F1600

API Mud Pump Bi-Metal Cylinder Liner For F800/F1000/F1300/F1600

Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API
Model Number: BOMCO, EMSCO, Garden Denver, IDECO, UNBT

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD80-150/pc
Packaging Details: Export wooden case
Delivery Time: 25-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Get Best Price Contact Now

Detail Information

Product Name: API Mud Pump Bi-Metal Cylinder Liner For F800/F1000/F1300/F1600 Keyword: Mud Pump Cylinder Liner
Model Series: F/ PZ /P / 3NB Series Type: Ceramic/ Bi-metal Type Liner
Application: Oil Drilling Rig Mud Pump Size: 4",4 1/2",5",5 1/2", 6", 6 1/4",6 1/2",6 3/4", 7", 7 1/2"

Product Description

API Mud Pump Bi-Metal Cylinder Liner For F800/F1000/F1300/F1600



The mud pump is the "heart" of the oilfield drilling system, and the cylinder liner is an important and easily worn component of the fluid end module of the mud pump. Therefore, the lifespan of the cylinder liner directly affects the mud pump. The working surface of the cylinder liner is in contact with high temperature and high-pressure gas, and there are piston rings that perform high-speed reciprocating motion on its surface. This determines that the cylinder liner not only needs sufficient strength and rigidity, but also must be resistant to high temperature, corrosion, and wear.

Bi-metal Cylinder Liner

Orchid Energy strictly controls the production of bimetallic cylinder liners within the tolerance range, ensuring easy installation, high inner liner smoothness, wear resistance, corrosion resistance, long service life, and suitability for various harsh working environments.
Outer sleeve: 45 # forged, tensile strength σ b> 610MPa, yield strength σ s> 450MPa, elongation § > 17%, hardness HB180-200;
Inner sleeve: High chromium cast iron (centrifugal casting), annealing hardness HRC ≤ 40, quenching hardness HRC60-67.
No. Types of liner Introduction Advantage
1 Ceramic Liner Using advanced toughened zirconia material, its fracture toughness value can reach 10-15Mpa, bending strength is 600-800Mpa, and its wear resistance and corrosion resistance are excellent, suitable for various harsh well conditions

1. High strength, wear-resistant, corrosion-resistant, high-pressure resistant, and high-temperature resistant;

2. Low maintenance and labor costs;

3. Longer service life;

4. Reduce piston wear and loss;

2 Bimetal liner Composed of a forged wear-resistant outer sleeve and a high chromium wear-resistant and corrosion-resistant inner sleeve. After inner sleeve treatment, the hardness can be increased by HRC64

1. High hardness and corrosion resistance;

2.No deformation, good surface smoothness;

3 Monometallic liner The quenching thickness of the carbon layer in the inner hole of a monometallic cylinder liner can reach 1.5~1.8 mm, and the hardness can reach 58~60HRC

1. High hardness;

2. High surface smoothness;

Size of Liner (Metric)

90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 150mm / 160mm / 170mm / 180mm

Size of Liner (Imperial)

4” / 4 1/2” / 5” 5 1/2” / 6” 6 1/4” / 6 1/2” / 6 3/4” / 7” / 7 1/2” / 8”
The types of mud pumps that Orchid Energy's cylinder liners can adapt Emsco: F-350 / F-500 / F-650/ F-800 / F-1000/ F-1300 / F-1600
Gardner Denver: TEE / PAH / PZ-7/ PZ-8 / PZ-9 / PZ-10 / PZ-11
Ideco: T-500 / T-800 / T-1000 / T-1300 / T-1600
NOV: 7-P-50 / 8-P-80 / 9-P-100/ 10-P-130 / 12-P-160 / 14-P-220
Oilwell: A-850-PT / A-1100-PT / A-1400-PT / A-1700-PT
Bomco: F-500 / F-800 / F-1000/ F-1300 / F-1600/ F-2200HL
Wirth: TPK 1000 / TPK 1300 / TPK 1600/ TPK 2000 / TPK 2200
Aplex: SC -170L / SC-230 / SC-300
Russia Pump: UNB600 / UNBT950 / UNBT950 / UNBT1180
API Mud Pump Bi-Metal Cylinder Liner For F800/F1000/F1300/F1600 0
