5/8", 3/4", 1", 7/8" Twist On Snap On Nylon Sucker Rod Centralizer Rod Guide

5/8", 3/4", 1", 7/8" Twist On Snap On Nylon Sucker Rod Centralizer Rod Guide

Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API
Model Number: All types

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: USD5-100/pc
Packaging Details: Export wooden case
Delivery Time: 7-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Get Best Price Contact Now

Detail Information

Product Name: 5/8", 3/4", 1", 7/8" Twist On Snap On Nylon Sucker Rod Centralizer Rod Guide Keywords: Sucker Rod Guide
Application: Oil Pumping Well Color: Blue
Material: Nylon Size: 5/8"~1 1/8"

Product Description

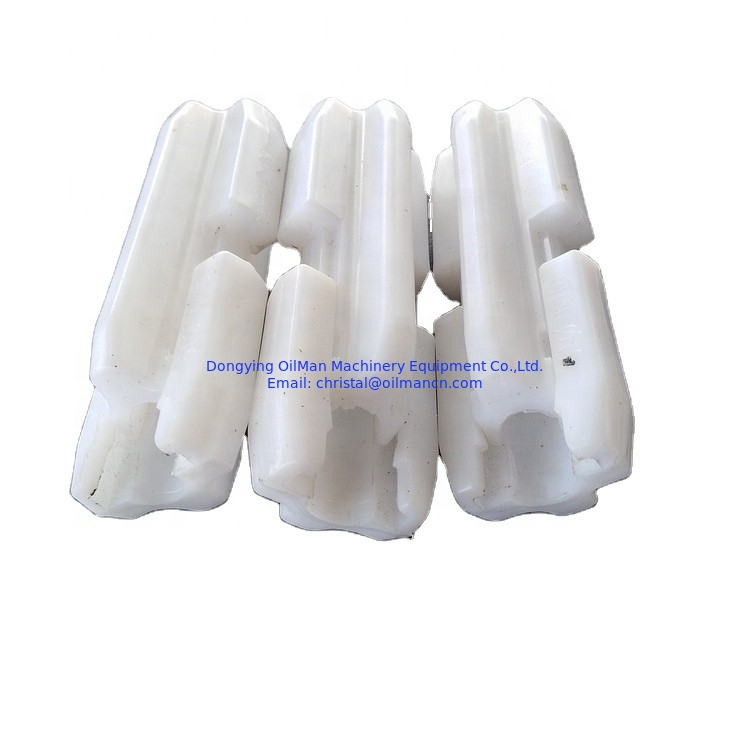

5/8", 3/4", 1", 7/8" Twist On Snap On Nylon Sucker Rod Centralizer Rod Guide



Sucker rod guide is a kind of downhole tools which is pumping well anti-abrasion, it is especially suitable for pumping well and directional well which above of sucker rod middle point,under the middle point of sucker rod, the rod body with nylon centralizer is works better.


The sucker rod moves up and down in the tubing, due to the elastic deformation of sucker rod, rod and oil tube wall is easy to make friction, ti makes sucker rod break off easily, sucker rod centralizer has strong flexibility, touched with the tubing wall can reduce the friction of rod and tube, and can be increase production life of pumping unit. The centralizer is connected with sucker rod , the outside diameter of centralizer is bigger than coupling outer diameter,so that can make the function of centralize. The centralizer is made of high strength wear-resistant material, and touched with the tubing to reduce the abrasion to achieve the purpose of anti-abrasion.



Features
It’s easy and convenient to install these three kinds of guides on any part of the sucker rod with low cost and high working efficiency.

Advantages
Inserted sucker rod guide, snap on sucker rod guide and single slot sucker rod guide can be installed on any part of the sucker rod with small volume and low cost. They are the most economical and practical rod guides.

Parameter



General Dimensions of Sucker Rod Guides
No. Guide Type Size (in) Outside Diameter (mm) Material
1 Inserted Sucker Rod Guides 5/8 46 PA6, PA66, PPA
2 5/8 58
3 3/4 58
4 7/8 58
5 1 72
6 Snap On Sucker Rod Guide 3/4 58 PA6, PA66, PPA
7 7/8 58
8 Single Slot Sucker Rod Guide 3/4 46 UHMWPE, PPA
9 7/8 46
10 1 50
11 1-1/8 62



5/8", 3/4", 1", 7/8" Twist On Snap On Nylon Sucker Rod Centralizer Rod Guide 0
