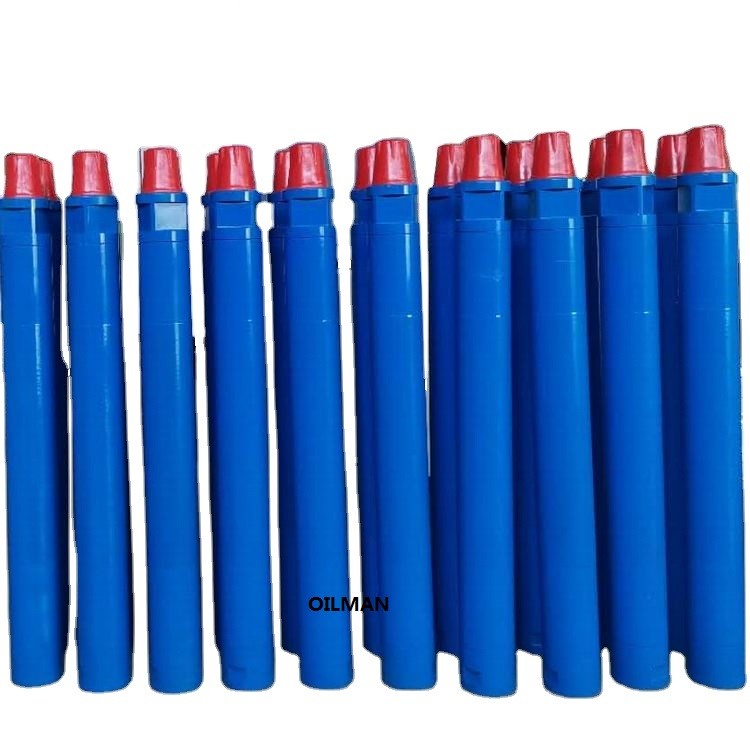

DHD360 Water Well DTH Hammer Button Bits High Air Pressure
Product Details:
| Place of Origin: | China |
| Certification: | ISO |
| Model Number: | All types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD800-3000/set |
| Packaging Details: | Export Wooden Case or Pallet |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Product Name: | High Air Pressure DHD360 DTH Hammer Button Bits, Water Well Drilling Hammer With Bit | Keywords: | High Pressure DTH Hammer With Bit |
|---|---|---|---|
| Usage: | Rock Drilling, Mining, Water Well Drilling | Warranty: | One Year |
| Hammer Size: | 1"~24" | Bit Diameter: | 90mm-311mm |
| Length: | 855mm-1502mm | Material: | Alloy Steel |
| High Light: | Water Well DTH Hammer Button Bits,DTH Hammer Button Bits DHD360,High Air Pressure Dth Hammer Bit |
||
Product Description
High Air Pressure DHD360 DTH Hammer Button Bits, Water Well Drilling Hammer With Bit
High Air Pressure DHD360 DTH Hammer Button Bits, Water Well Drilling Hammer With Bit
Our company is specializing in drilling rigs and drilling parts for decades. We have kinds of drilling rigs, such as DTH (Down The Hole) drilling rig, Water well drilling rig, Oil well drilling rig, Piling drilling rig with different types of Truck Mounted, Trailer Mounted and Crawler Type. For drilling parts, we have the followings: DTH hammers/bits, Tricone bits, PDC Bits, Button Bits, Chisel Bits, Drill Pipe, Pick Cutters etc.
DTH Hammer Types:
Low air pressure: 0.5-0.7Mpa
Middle air pressure : 0.7-1.8Mpa
High air pressure:1.8-2.5Mpa
It also has the following advantages:
1) Non-Blocking:Our S-series Down the hole hammers are proved to ensure extremely low rate of blocking during it works.
2) High Efficiency:The well drilling equipment carries with larger power of impact frequency and torque, thus ensuring faster penetration. Compared with others, the efficiency can be improved 10%.
3) Longer Service Life:All surfaces of the DTH hammer and bits are treated by anti-friction and intensified technology. When used in deep-hole drilling works, it can reach at 5000 meters or more.
4) Excellent Cleaning Effect: This DTH tool has large air output, which specially designed for water well users and enables it to flush out cuttings in deep hole drilling works.
5) Our hammer and bits are compatible with DHD, QL and Mission hammer and bits.
Specification of Some DTH hammers we supply:
| HAMMER SIZE | BIT DIA(MM) | BIT DIA(INCH) | SHANK |
| 1” | 64MM-76MM | 2 1/2"-3" | BR1 |
| 2” | 76MM-90MM | 3"-3 1/2" | BR2/PAD320 |
| 3” | 85MM-105MM | 3 2/5"-4" | BR3/DHD330/COP32/PAD330 |
| 3.5” | 85MM-110MM | 3 2/5"-4 1/3" | DHD3.5/IR3.5/COP34/QL30/PAD3.5 |
| 4” | 105MM-140MM | 4"-5 1/2" | DHD340/COP44/QL40/SD4/MISSION40/PAD340 |
| 5” | 127MM-200MM | 5"-8" | DHD350/COP54/QL50/SD5/MISSION50/PAD350 |
| 6” | 152MM-254MM | 6"-10" | DHD360/COP64/QL60/SD6/MISSION60/PAD360 |
| 8” | 195MM-350MM | 7.2/3"-13 4/5" | DHD380/COP84/QL80/SD8/MISSION80/PAD380 |
| 10” | 254MM-380MM | 10"-15" | SD10/NUMA100/DHD1100/PAD1100 |
| 12” | 305MM-457MM | 12"-18" | SD12/NUMA120/DHD1120/PAD1120 |
DTH Hammer Bit:
DTH bit is also our main product. After mang years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.
1.High and low air pressure down-the-hole drill bits
2.Low air pressure hole Dia.:65-220mm
3.High air pressure hole Dia.:85-305mm
4.Face type:drop center/concave/convex/double gauge/flat
5.Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Digger etc.
High Air Pressure DHD360 DTH Hammer Button Bits, Water Well Drilling Hammer With Bit
DTH Hammer Bit:
Packing: Wooden case, or customized packing.
Delivery time: Stock or depending on quantity
Delivery: By express, truck, train, air, sea
High Air Pressure DHD360 DTH Hammer Button Bits, Water Well Drilling Hammer With Bit
