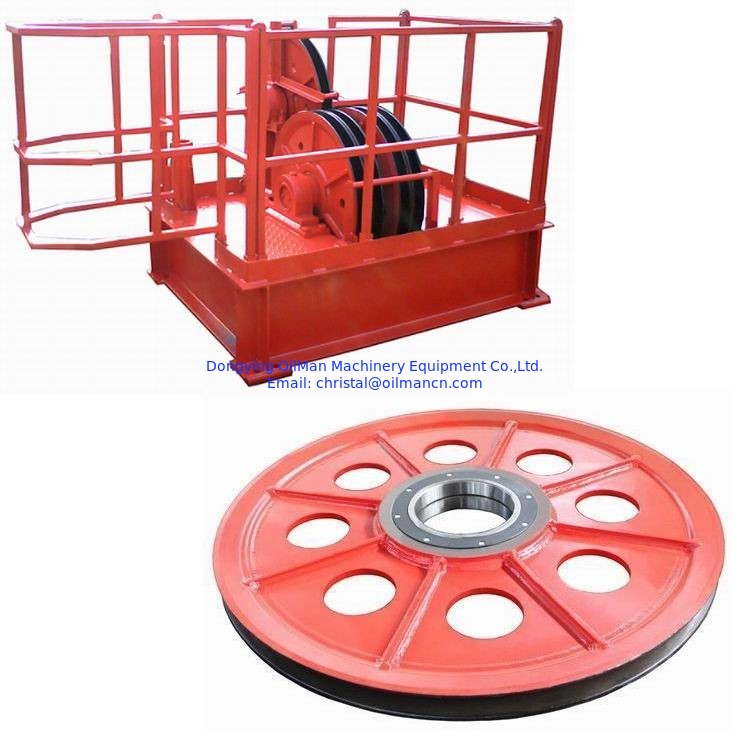

API 8C Drilling Rig Accessories , Crown Block Sheave Block Pulley

API 8C Drilling Rig Accessories , Crown Block Sheave Block Pulley

Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API 4F/8C
Model Number: TC90,TC135,TC158,TC170,TC225,TC315,TC450,TC675

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD5000-20000/set
Packaging Details: Standard export package or as your request
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Product Name: API 8C Drilling Rig Accessories Crown Block Sheave Traveling Block Pulley Keywords: Crown Block Sheave
Application: Drilling Rig Hoisting System Warranty: One Year
Max.Hook Load: 2250-4500kN OD Of Guidinig Sheave: 1270-1524mm
Size: 20"~36" Dia.Of Wirerope: 32-38mm
High Light:

API 8C Drilling Rig Accessories

,

API 8C Sheave Block Pulley

,

Crown Block Sheave Block Pulley

Product Description

API 8C Drilling Rig Accessories Crown Block Sheave Traveling Block Pulley



Product Description

OD of the sheave(mm):762mm,915mm/1005mm,1120mm,1270mm,1524mm

Available crown block model: TC90,TC135,TC158,TC170,TC225,TC315,TC450,TC675

Available traveling block model:YG110,YG150,YG180,YC225,YC315,YC450,YC675

The frame of the crown block is made with high strength steel material. Working pulley block are set slantingly to counteract the torsion of sheave and make side board of traveling block face to derrick.

The pulley groove is undertaken middle-frequency quencher so as to extend operating life of sheaves. Working sheave are assembled with double-conic bearing, where in each bearing has its individual lubricating channel.

Rope bar are provided to prevent the wire rope from crossing or failing out the groove. The Crown block is also equipped with wooden buffer and protection net to prevent bump. It is equipped with derrick crane as well for repairing the crown block.

Sand sheaves and auxiliary sheaves assy can be provide as the requirement. climbing assistor and falling-proof device can be installed according to various requirements

Besides, sheaves and bearing are interchangeable with its matched crown block.

Note: Customized design and configuration is available to meet different requirements



Sheave features:

1) Material: Q235B, Q345B, 35#, 45#

2) Heat treatment :hardening and tempering,high frequency quenching,carburizing quenching and so on.

3) S45C groove surface quench: HRC45-55

4) Groove surface quench depth: ≥2mm

5) Max processing diameter: 2,000mm

6) Short production period

7) Inspection:all items are checked and tested thoroughly during every working procedure and after

the product is finally manufactured to ensure that best quality product goes out in the market.

8) good quality with reasonable price,timely delivery and great customer service.

API 8C Drilling Rig Accessories Crown Block Sheave Traveling Block Pulley

Specifications:
Model TC30 TC50 TC90 TC135 TC170 TC225 TC315 TC450
Max Hook Load (KN) 300 500 900 1350 1700 2250 3150 4500
Dia of Wire Line (mm) 24 24 26 29 29 32 35 38
OD of Sheaves (mm) 475 610 762 1005 1005 1120 1270 1524
Number of Sheaves 4 5 5 5 6 6 7 7
Size Length 738 860 2447 2320 2668 2668 3112 3410
(mm) Width 472 670 1695 1436 2460 2709 2783 2753
  Height 575 588 1624 1781 1855 2469 2800 2938
Weight (kg) 245 464 3260 2775 4540 5650 7600 11012



Crown Block Sheave Technical Parameters
Model Parameters
TC225
TC315
TC450
Max.Hook Load                     kN(lbf)
2250 (505800)
3150(708200)
4500(1011600)
Qty. And OD of Sheave        mm(in)
(5+1)
1120(44)
(6+1)
1270(50)
(6+1)
1524(60)
OD of Guiding Sheave         mm(in)
1270(500)
1524(60)
1524(60)
Dia. Of Wirerope                  mm(in)
32(1 1/4)
35(1 3/8)
38(1 1/2 )
Overall Dimensions mm(in)
Length
3200(126)
3295(129.7)
3305(1300)
Width



Height
3135(123.4)
3700(145.7)
3760(148)
Weight   kg(lbs)
5764   (12707.3)
7980 (17592.9)
10600    (23369)
Products Show

API 8C Drilling Rig Accessories Crown Block Sheave Traveling Block Pulley

API 8C Drilling Rig Accessories Crown Block Sheave Traveling Block Pulley

API 8C Drilling Rig Accessories Crown Block Sheave Traveling Block PulleyAPI 8C Drilling Rig Accessories Crown Block Sheave Traveling Block PulleyAPI 8C Drilling Rig Accessories Crown Block Sheave Traveling Block Pulley
