Spacer Bop Well Control Equipment , Casing Tubing Drilling Spool Adapter

Product Description

API 6A Oilfield Riser Flange, Spacer Adapter Spool, Casing Tubing Spool Or Drilling Spool

API 6A Oilfield Riser Flange, Spacer Adapter Spool, Casing Tubing Spool Or Drilling Spool

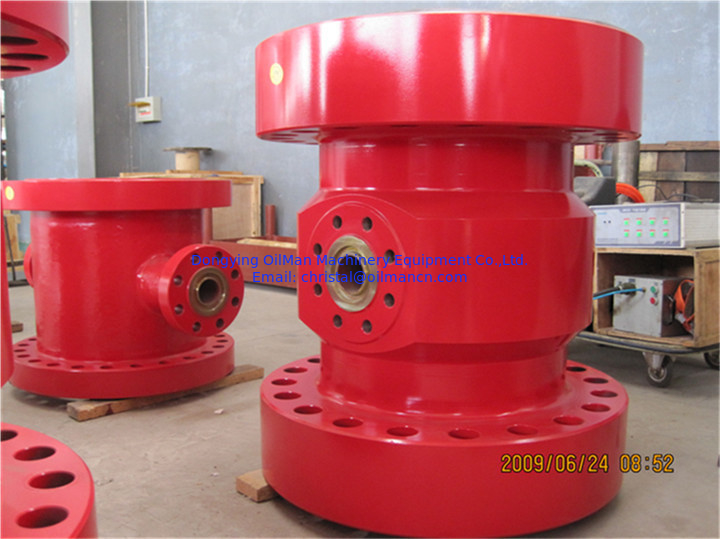

Description of Spacer Spool:

API 6A Standard Spacer Spools Riser Flange Or Spacer Flange
1. Standard: API
2. Pressure:2000PSI-20000PSI
3. Size: 3 1/8"--26 3/4"

Spacer spool, in accordance with API 6A, have end connectors of the same size, rated working pressure and design. Spacer spool is wellhead sections which have no provision for suspension of tubular members and which may have no provision for sealing of tubular members

We manufacture the spacer spool in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications. spacer spool usually has the same nominal end connections. spacer spool identification consists of naming each end connection and the overall length (outside of end connection face to outside of end connection face).

Characters

1)Made from high-strength alloy and processed specially with heating treatment.

2)Designed and manufactured with reference to API 6A technical specifications.

3)Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR-0175 technical specifications.

4)Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.

5)All steel tanks are welded with stainless steel for long-term anti-corrosion.

6)Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.

Detailed Size for API 6A Standard Spacer Spools Riser Flange Or Spacer Flange

We also can do adapter spools, DSA etc products, All sizes and pressure, we can design and produce according to clients detailed requirements .

Detailed Images:

Related Products:

Our drilling BOP includes an annular BOP and a ram BOP. The annular BOP, consisting primarily of a shell, a header, a rubber core and a piston, and which by design is equipped with a hydraulic control system, can be used independently but usually operates in tandem with a ram BOP.
In accordance with API 16A requirements, the connections at the top and bottom of the rig are either flange or studded flange and can be conveniently connected to a drilling spool or ram BOP.
Our ram BOP features an advanced design that is nonetheless easy to operate.
The ram BOP is reliable, and spare parts can be easily replaced. As with the annular BOP, it can be used independently or coupled to other BOP combinations.
A hydraulic system can be used to open and close the ram, but should there be no power or air on site to run this system, the rams can be opened or closed manually.
