7 1/16" To 20 3/4" Blowout Preventer Annular BOP With Rubber Core
Product Details:
| Place of Origin: | China |
| Certification: | API 16A |
| Model Number: | FH18-21,FH18-35,FH35-35,FH35-70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10000-50000/set |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 7-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Product Name: | 7 1/16" To 20 3/4" Blowout Preventer Annular BOP With Rubber Core | Keywords: | Annular BOP,Blowout Preventer |
|---|---|---|---|
| Application: | Oil & Gas Drilling | Warranty: | One Year |
| Nominal Diameter: | 7-1/16" To 20-3/4" | ||
| Highlight: | Oilfield Annular Preventer Bop,Annular Preventer Bop Hydraulic |
||
Product Description

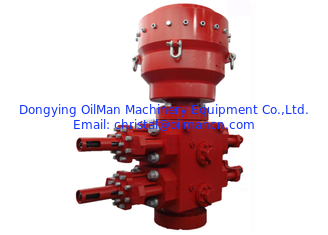

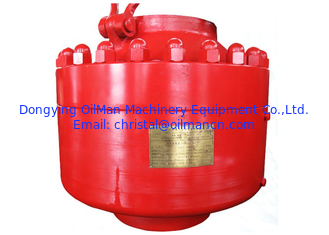

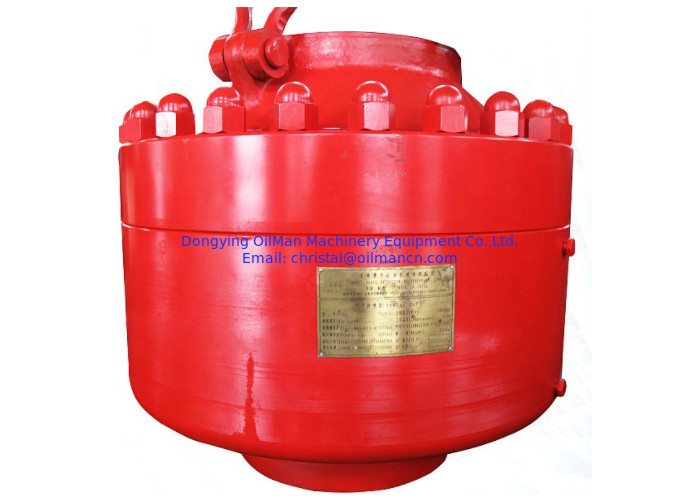

7 1/16" To 20 3/4" Blowout Preventer Annular BOP With Rubber Core
Annular BOP is offered in a variety of series and pressure ratings. All the annular BOPS are designed and manufactured in accordance to API Spec 16A 3rd edition.
Annular BOP consists of the body, upper housing, dust-proof ring, piston and packing element etc. It can seal all sizes of kelly, drill pipe, drill collar, tool joint, casing and cable, etc. And it can also competely shut off and seal the wellbore when there is not any drilling tools in the well hole.
This BOP, when using accumulators, can allow the 18°/35° non-fine threaded tool joint pass through to carry our snubbing operation.
| Annular BOP specification | |||||||||
| Model | FH18-21 | FH18-35 | FH23-21 | FH23-35 | FH28-14 | FH28-21 | FH28-35 | FH35-21 | FH35-35 |
|
7 1/16" 3000 psi |
7 1/16 5000 psi |
9" 3000 psi |
9" 3000 psi |
11" 2000 psi |
11" 3000 psi |
11" 5000 psi |
13 5/8" 3000 psi |
13 5/8" 5000 psi |
|
| Bore size |
179.4mm (7 1/16") |
179.4mm (7 1/16") |
228.6mm (9") |
228.6mm (9") |
279.4mm (11") |
279.4mm (11") |
279.4mm (11") |
346.1mm (13 5/8") |
346.1mm (13 5/8") |
| Rated working pressure |
21MPa (3000 psi) |
35MPa (5000psi) |
21MPa (3000 psi) |
35MPa (5000psi) |
14MPa (2000psi) |
21MPa (3000psi) |
35MPa (5000psi) |
21MPa (3000psi) |
35MPa (5000psi) |
| Hydrostatic Shell test Pressure |
42MPa (6k psi) | 52.5 MPa (7500psi) |
42MPa (6k psi) |
52.5 MPa (7500psi) |
28 MPa (4000psi) |
42 MPa (6000psi) |
52.5 MPa (7500psi) |
42 MPa (6000psi) |
52.5 MPa (7500psi) |
| Operating chamber rated working pressure |
14MPa (2k psi) | 14MPa (2000psi) |
14MPa (2k psi) |
14MPa (2000psi) |
14MPa (2000psi) | 14MPa (2000psi) |
14MPa (2000psi) |
14MPa (2000psi) |
14MPa (2000psi) |
| Strength working pressure of hydraulic control system |
21MPa (3000psi) |
21MPa (3000psi) |
21MPa (3000psi) |
21MPa (3000psi) |
21MPa (3000psi) | 21MPa (3000psi) |
21MPa (3000psi) |
21MPa (3000psi) |
21MPa (3000psi) |
| Recommended hydraulic control working pressure for closed pipe string |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
≤10.5 Mpa (1500psi) |
| Volume to open chamber |
15L (3.92gal) |
15L (3.92gal) |
22.8L (6.02gal) |
33L (8.72gal) |
33L (8.72gal) |
33L (8.72gal) |
56L (14.79gal) | 72L (19.02gal) |
72L (19.02gal) |
| Volume to close chamber |
21L (5.55gal) |
21L (5.55gal) |
34L (8.98gal) |
42L (11.10gal) | 46L (12.15gal) | 46L (12.15gal) | 72L (19.02gal) | 98L (25.89gal) |
98L (25.89gal) |
| Closure range | 0~7 1/16" | 0~7 1/16" | 0~9" | 0~9" | 0~11" | 0~11" | 0~11" | 0~13 5/8" | 0~13 5/8" |
| Hydraulic connection ports | NPT1 | ||||||||
| Temperature rating | T20 (-29~121ºC) or as required | ||||||||
| Dimension (OD x Height) | 745mm*842mm | 745mm*842mm | 908mm*838mm | 1016mm*924mm | 1013mm*855mm | 1013mm*873mm | 1146mm*110mm | 1271mm*1176mm | 1271mm*1176mm |
| Weight | 1433000g | 1520kg | 2440kg | 3050kg | 3512kg | 3400kg | 4716kg | 5700kg | 6415000g |
