API 1500PSI 2 7/8'' Sucker Rod Blowout Preventer, Sucker Rod BOP
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API & ISO |
| Model Number: | All types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD400-5000/set |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 7-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
|
Detail Information |
|||
| Condition: | New | Product Name: | API 1500PSI 2 7/8'' Sucker Rod Blowout Preventer, Sucker Rod BOP |
|---|---|---|---|
| Keywords: | Sucker Rod BOP | Application: | Oil & Gas Drilling |
| Warranty: | One Year | Suitable Sucker Rod Size: | 5/8″~1 1/2″ |
Product Description

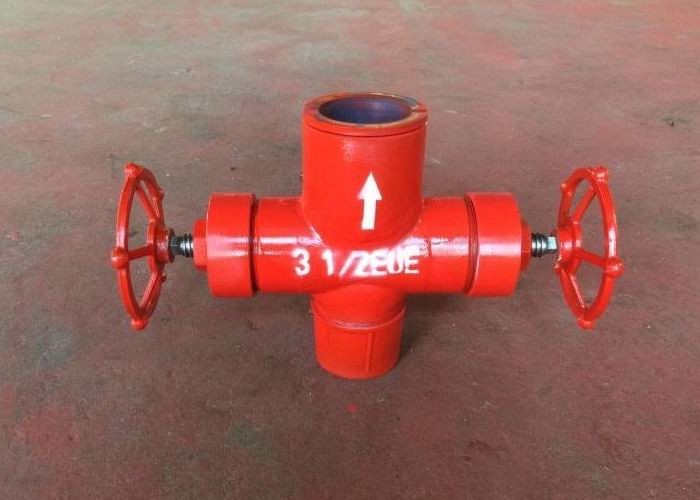

API 1500PSI 2 7/8'' Sucker Rod Blowout Preventer, Sucker Rod BOP
API 1500PSI 2 7/8'' Sucker Rod Blowout Preventer, Sucker Rod BOP
Description of Sucker Rod BOP:
Rod bop to prevent the leakage of oil and gas in the recovery operation control device, can guarantee the well-flushing, sand washing, fracturing downhole operation smoothly. By changing different valve core, and can meet the needs of all kinds of rod seal. Product design is reasonable, simple structure, convenient operation, reliable sealing, long service life and is one of indispensable tools in oil field work.
Main technical parameters of sucker rod BOP:
| Brand | Dongying OilMan |
| Standard | API16A; API6A |
| Nominal size | 5/8”~1 1/2” |
| Rated pressure | 15000PSI |
| Produce Specification level | NACE MR 0175 |
| Temperature level | K~U |
| Material level | AA~HH |
| Working Pressure | 14 MPa, 21MPa, 35MPa |
| SIZE (in) | ROD D.(in) | THREAD D. (in) | LENGTH (ft) | OUTSIDE DIAMETER OF PIN SHOULDER(mm) | LENGTH OF PIN(mm) | LENGTH OF WRENCH SQUARE(mm) | WIDTH OF WRENCH SQUARE(mm) |
| 5/8" | 5/8" | 15/16 | 2 4 6 8 10 25 30 | 31.75 | 31.75 | ≥31.75 | 22.23 |
| 3/4" | 3/4" | 2001/1/16 | 38.1 | 36.51 | 25.4 | ||
| 7/8" | 7/8" | 2001/3/16 | 41.28 | 41.28 | |||
| 1" | 1" | 2001/3/8 | 50.8 | 47.63 | ≥38.10 | 33.34 | |
| 1-1/8" | 1-1/8" | 2001/9/16 | 57.15 | 53.98 | ≥41.28 | 38.1 |
Detailed Images:
Related Products:
Our drilling BOP includes an annular BOP and a ram BOP. The annular BOP, consisting primarily of a shell, a header, a rubber core and a piston, and which by design is equipped with a hydraulic control system, can be used independently but usually operates in tandem with a ram BOP.
In accordance with API 16A requirements, the connections at the top and bottom of the rig are either flange or studded flange and can be conveniently connected to a drilling spool or ram BOP.
Our ram BOP features an advanced design that is nonetheless easy to operate.
The ram BOP is reliable, and spare parts can be easily replaced. As with the annular BOP, it can be used independently or coupled to other BOP combinations.
A hydraulic system can be used to open and close the ram, but should there be no power or air on site to run this system, the rams can be opened or closed manually.
