API 7K ZP175 ZP275 ZP375 Oil Drilling Rigs Spare Parts Rotary Table
Product Details:
| Place of Origin: | China |
| Certification: | API 7K |
| Model Number: | ZP135, ZP175,ZP275,ZP375,ZP495 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD5000-30000/set |
| Packaging Details: | Standard export package or as your request |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Condition: | New | Product Name: | API 7K ZP175 ZP275 ZP375 Oil Drilling Rigs Spare Parts Rotary Table |
|---|---|---|---|
| Keywords: | Drilling Rig Rotary Table | Application: | Oil And Gas Well Drilling |
| Warranty: | One Year | Opening Size: | 7" - 49 1/2" |
Product Description

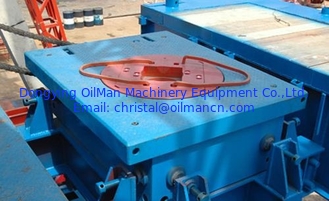

API 7K ZP175 ZP275 ZP375 Oil Drilling Rigs Spare Parts Rotary Table
API 7K ZP175 ZP275 ZP375 Oil Drilling Rigs Spare Parts Rotary Table
Product Introduction:
Rotary table is effective device used in drilling rig. It is mainly used for: 1. Rotating the drill rod in the process of the rotary table drilling or salvage. 2. Bearing the torque reaction of the drill spindle during the drilling. 3. Suspending the pipe column while unloading the drill rod or well tube. 4.Loosen the thread join while raising the drill rod.
The product is designed, manufactured and examined in accordance with the standards of API Spec 7K.
Features:
• The pinion and gear are made of alloy steel.
• The master bushing for rotary table is made from a steel casting.
• Pin transmission type is suitable for API standard square or hexagonal Kelly roller bushing.
• Effective lubrication and reliable seals are provided by design.
Main Technical Parameters of Rotary Table:
| Model | ZP175 | ZP205 | ZP275 | ZP375 | ZP375Z | ZP495 | |
| Table opening | mm | 444.5 | 520.7 | 698.5 | 952.5 | 952.5 | 1, 257.3 |
| (in) | 17.5 | 20.5 | 27.5 | 37.5 | 37.5 | 49.5 | |
| Distance from table axis to center inner row of sprocket teeth | mm | 1,118 | 1, 353 | 1, 353 | 1, 353 | 1, 353 | 1, 651 |
| (in) | 44 | 53.25 | 53.25 | 53.25 | 53.25 | 65 | |
| Static load rating | kN | 1,350 | 3, 150 | 4, 500 | 5, 850 | 7, 250 | 9, 000 |
| lbs | 300, 000 | 700, 000 | 1, 000, 000 | 1, 300, 000 | 1, 600, 000 | 2, 000, 000 | |
| Max working torque | Nm | 13, 729 | 22, 555 | 27, 459 | 32, 362 | 45, 000 | 64, 400 |
| Max speed | r/min | 300 | 300 | 300 | 300 | 300 | 300 |
| Gear ratio | 3.75 | 3.22 | 3.67 | 3.58 | 3.62 | 4.0883 | |
| Overall dimensions | mm | 1, 972× | 2, 266× | 2, 380× | 2, 468× | 2, 468× | 3, 015× |
| (L×W×H) | 1, 372×566 | 1, 475×704 | 1, 475×690 | 1, 920×718 | 1, 810×718 | 2, 254×819 | |
| Weight | kg | 4, 172 | 5, 662 | 6,122 | 7, 970 | 9,540 | 11, 260 |
Products Show:
Company Information:
About us
Dongying Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
