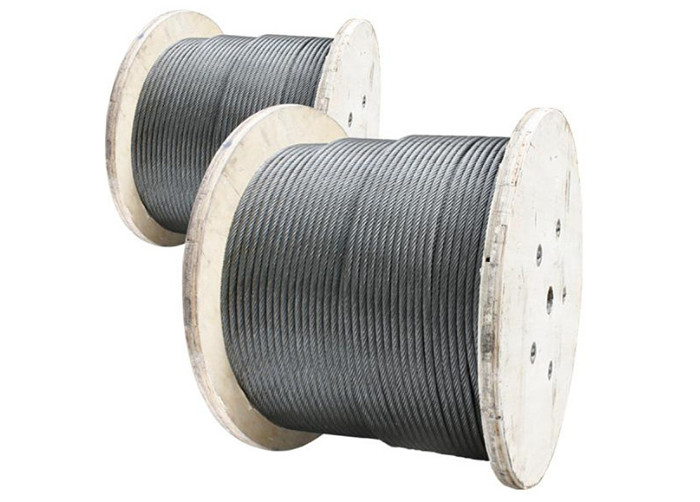

API 9A Drilling Rig Accessories , 1960 2160 MPa Galvanized Steel Wire Rope

API 9A Drilling Rig Accessories , 1960 2160 MPa Galvanized Steel Wire Rope

Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API 9A
Model Number: 6x26WS-IWRC

Payment & Shipping Terms:

Minimum Order Quantity: 500 meter
Price: USD3-60/m
Packaging Details: Plastic reel, wooden wheel and wooden pallet
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 meters per month
Get Best Price Contact Now

Detail Information

Product Name: API 9A Oil Rig Drilling Rig Equipment 6x26WS-IWRC Galvanized Steel Wire Rope/ Drilling Line Keywords: Galvanized Steel Wire Rope
Material: 45# /60#/70#High Carbon Steel Usage: Hoisting, Derricking, Lifting, Towing, Port Load And Unload, Blast Furnace Hoisting And Oil Well Drilling
Warranty: One Year Size: 5-50mm
Tensile Strength: 1570 1670 1770 1870 1960 2160 MPa Wire Rope Lay: SZ,ZS,ZZ,SS
High Light:

API 9A Drilling Rig Accessories

,

1960 MPa Galvanized Steel Wire Rope

,

2160 MPa Galvanized Steel Wire Rope

Product Description

API 9A Oil Rig Drilling Rig Equipment 6x26WS-IWRC Galvanized Steel Wire Rope/ Drilling Line



Description of API 9A Drilling Line/Steel Wire Rope:



Petroleum Drill Lines are produced and tested in accordance with latest edition of API SPEC 9A" Specification for Wire Rope" . The wire rope is linear contacted and have high strength.



Main Applications: Various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.



It is widely used in oil field of both land and ocean such as drilling lines, rod and tubing pull lines, horses head pumping unit lines, winch lines, and so on.



Common Steel Wire Rope Construction


1×7,1×19, 6×7+FC, 7×7, 6×12+7FC, 6×15+7FC, 6×24+7FC
6×19+FC,6×19+IWRC, 6×19+IWS(7×19), 6×37+FC, 6×37+IWRC
6×19S+FC, 6×19S+IWRC, 6×19W+FC 6×19W+IWRC,
6×25Fi+FC, 6×25Fi+IWRC, 6×26SW+FC, 6×26SW+IWRC
6×29Fi+FC, 6×29Fi+IWRC, 6×31SW+FC, 6×31SW+IWRC,
6×36SW+FC 6×36SW+IWRC, 6×61+FC
18×7+FC, 19×7, 18×19+FC, 34×7+FC, 35W×7
8×19+FC, 8×19S+FC,8×19S+IWR and so on.



Technical Data of Our Oilfield Wire Rope

Type Diam. Met. area Met. Outer Wire IPS EIPS
in. mm. mm2 kg/m mm kN kN
18x7+FC 1/2 ~1 1/2 13.0~38.0 81~694 0.64~5.79 0.86~2.50 88~751 96~826
19x7 1/2 ~1 1/2 13.0~38.0 86~733 0.67~6.07 0.86~2.50 88~751 96~826
6x27H+IWRC 1~1 7/8 26~48 303~1031 2.81~9.90 1.86~3.43 439~1490 484~1640
6x30G+IWRC 1~2 26~52 303~1210 2.81~11.20 1.86~3.71 439~1680 484~1840
8x19S+FC 1/2~1 1/8 13.0~29.0 82~410 0.70~3.56 0.86~1.92 90~443 104~507
6x36SW+FC 3/4~2 19~52 146~1095 1.41~10.00 1.06~2.90 212~1420 233~1560
6x36SW+IWRC 3/4~2 3/8 19~60 172~1711 1.55~15.50 1.06~3.35 228~2130 262~1970
6x29Fi+FC 3/4~2 19~52 148~1111 1.41~10.00 1.06~2.90 212~1420 233~1560
6x29Fi+IWRC 3/4~2 1/8 19~54 173~1396 1.55~12.40 1.06~3.01 228~1710 262~1970
6x31SW+FC 3/4~2 19~52 146~1093 1.41~10.00 1.21~3.30 212~1420 233~1560
6x31SW+IWRC 5/8~1 7/8 16~48 119~1072 1.07~9.67 1.17~3.51 159~1350 183~1360
6x26SW+FC 3/4~1 7/8 19~48 142~909 1.41~8.80 1.39~3.51 212~1250 233~1220
6x26SW+IWRC 5/8~1 7/8 16~48 119~1072 1.07~9.67 1.17~3.51 159~1350 183~1360
6x25Fi+FC 7/8~2 22.0~48.0 198~1291 2.11~11.00 1.40~3.30 308~1630 354~1550
6x21S+FC 1/2~2 13~52.0 68~1091 0.63~10.00 0.96~3.85 95~1420 105~1050
6x19S+FC 1/2~1 3/4 13.0~45.0 68.7~823.0 0.63~7.66 1.03~3.58 95~1100 105~898
6x19S+IWRC 1/2~1 3/4 13.0~45.0 80.7~967.5 0.68~8.44 1.03~3.58 102~1180 118~1010
6x7+FC 3/8~7/8 9.50~22.00 33.1~177.6 0.31~1.71 1.00~2.35 52.1~273.0 -
5x7+FC 3/16~5/16 4.76~7.94 8.3~23.1 8.01~22.17 0.57~0.95 13.8~37.8 -
5x5+FC 5/32~5/16 3.97~7.94 5.8~23.1 5.15~20.54 0.60~1.19 8.9~34.7 -


API 9A Drilling Rig Accessories , 1960 2160 MPa Galvanized Steel Wire Rope 0



Products Show:



API 9A Drilling Rig Accessories , 1960 2160 MPa Galvanized Steel Wire Rope 1

API 9A Drilling Rig Accessories , 1960 2160 MPa Galvanized Steel Wire Rope 2



Packing & Shipment:



Packing Details : Reel or Roll or as our customer's request

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

API 9A Drilling Rig Accessories , 1960 2160 MPa Galvanized Steel Wire Rope 3

Company Information:



About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
