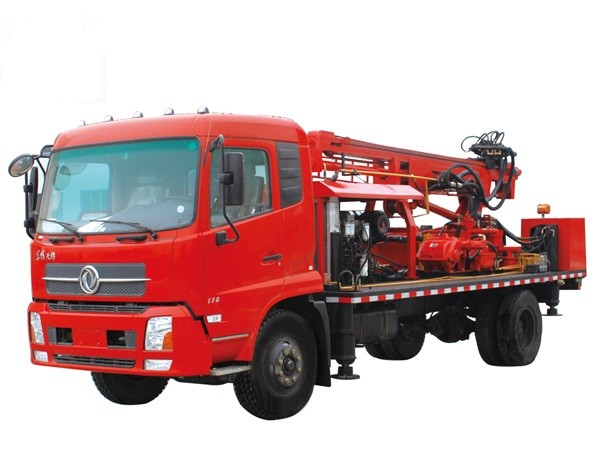

350 Meter Truck Mounted Mobile Water Well Drilling Rig Borehole Drilling Machine DTH And Mud Drilling
Product Details:
| Place of Origin: | China |
| Certification: | ISO |
| Model Number: | Truck-mounted |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD40000-60000/set |
| Packaging Details: | Standard export packing |
| Delivery Time: | 15-45 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Drilling Depth: | 350m | Bore Diameter: | 115 - 350mm |
|---|---|---|---|
| Machine Weight: | 12 Ton | Drill Method: | DTH And Rotary Drilling |
| Usage: | Water Well | Condition: | New |
| Warranty: | One Year | Product Name: | 350 Meter Truck Mounted Mobile Water Well Drilling Rig Borehole Drilling Machine DTH And Mud Drilling |
| Keyword: | Truck Mounted Drilling Rig | Air Consumption(m³/min): | 16 - 40 |
Product Description
350 Meter Truck Mounted Mobile Water Well Drilling Rig Borehole Drilling Machine DTH And Mud Drilling
Description of truck-mounted drilling rig:
Truck-mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Main features:
1.350m truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary and DTH drilling rig.
2. It can drill on clay, sand and rock
3.The power of drilling rig comes from the truck engine, the rig sets up distribute implement and hydraulic system.
4. We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
5. We can set up a generator (15kw) , so that it is convenience to illuminate or work at night.
6.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
7. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
8. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Technical Parameters:
| Technical parameter of drilling rig | |
| Bore diameter(mm) | 115-350mm |
| Bore depth(m) | 350 |
| Work pressure(Mpa) | 1.05-3.5 |
| Air consumption(m³/min) | 16--40 |
| Drill rod length(m) | 3 |
| Drill rod diameter(mm) | 89 |
| Dimension(mm) | 8900*2100*3300 |
| Climb ability(degree) | 20 |
| Total weight(T) | 12 |
| Feed system | |
| Axial pressure(N) | 57000 |
| Max Lifting force(T) | 12 |
| Rotation torque(Nm) | 5600 |
| Rotation speed | 0--100 |
| Diesel engine | |
| Model | Yuchai |
| Power(kw) | 118 |
| Mud pump | |
| Model | BW450/5 |
| Type | horizontal, triplex. single acting reciprocation piston pump |
| Stroke (mm) | 100 |
| Bore(m) | 95 |
| Pump speed(min) | 223 168 112 85 |
| Output volume(1/min) | 450 340 240 172 |
| Discharge pressure(MPa) | 2 3 4 5 |
| Input torque(nm) | 450 |
| Input speed(rpm) | 460 |
| Suction height(m) | 2.5 |
| Input hose diameter(mm) | 89 |
| Discharge hose diameter(mm) | 51 |
| Cubage(length x wide x height)(mm) | 1390 x 760 x 1100 |
| Weight(kg) | 520 |
| Truck chassis:DONGFENG | |
| Model: | Cummins |
| Wheel base | 5000mm |
| Gear box | 6 speed |
| Top speed | 85km/h |
| Drive form | 4*2 |
Product Pictures:
Various Drilling Tools
Drilling rigs can be supplied in custom-built models in various configurations as indicated, mounting features to suit all special requirements and technical specifications can be offered accordingly.
Package & Shipment:
We have models from 100m to 600m depth, mounted on wheel trailer, crawler/track/skid and truck for your difference choice!
