Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API 8C
Model Number: SH Type, DH Type

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD1000-8000/piece
Packaging Details: Export Wooden Case
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 pieces per month
Get Best Price Contact Now

Detail Information

Condition: New Product Name: API 8C Single Arm Elevator Links 150 /250/500/750 Tons Weldless Elevator Links For Drilling Rig
Keywords: Elevator Links Application: Oil Well Drilling
Warranty: One Year Material: Alloy Steel
Processing Type: Forging Color: Red Or As Customer Requirement
High Light:

750 Tons Drilling Rig Tools

,

Weldless Drilling Rig Tools Elevator Links

Product Description

API 8C Single Arm Elevator Links 150 /250/500/750 Tons Weldless Elevator Links For Drilling Rig

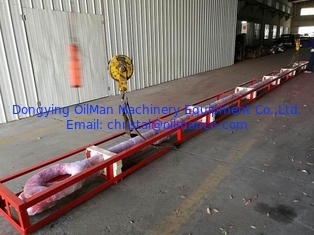

                                         Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 0



DH forged elevator links are designed to hang elevators from Top Drive System or Hooks in drilling operation. Read the Manual before use elevator links.

Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated, surface-strengthen treated and NDT for super performance and long service.

The rating loads of elevator links series are

150t(1350kN),200t (1800kN),250t (2250kN),350t (3150kN),500t (4500kN).

All the technical data and properties of elevator links completely conform to the requirements of SY/T 5035 and API Spec 8C.

Structural:


Elevator links can work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator.

Specifications for DH forged elevator links:

Specifications
Rating loads
Length

US ton
kN
cm
in
DH 150
150
1335
180
71
DH 200
200
1780
270
108
DH 250
250
2225
270
108
DH 350
350
3115
330
130
DH 500
500
4450
360
142
Note:1,1 US ton≈8.896kN 2,The elevator links of the specifications in this chart are manufactured by our company, other specifications our customer required can be defined in contract.

Perfection link

Description:

SH dependable, efficient perfection links are designed for light loads.

Perfection links are made by forging, bending and electric welding of high-quality steel bar stock, which is then heat-treated and NDT examined. Rating loads of perfection links series are 50t (450kN), 75t (675kN), 150t (1350kN).

All the technical data and properties of perfection links completely conform to the requirements of SY/T 5035 and API Spec 8C.

Structural:

Perfection links can work in pairs. Bigger end of perfection link is for the hook link ear, and small end is for the elevator.

Specifications for SH Perfection Links:

Specifications
SH 50
SH 75
SH 150
Rating loads
50t(450kN)
75t(665kN)
150t(1335kN)
Length
1100mm
1500mm
1800mm
Note:1,1 US ton≈8.896kN 2, The elevator links of the specifications in this chart are manufactured by our company, other specifications our customer required can be defined in contract.

Products Show:

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 1

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 2

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 3

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 4

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 5

Packaging & Shipping:

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 6

Related Products:

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 7

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 8

Company Information:

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.



Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 9

Our Services:

1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.

2. Our promise: Any equipment sold by Dongying OilMan at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, Dongying OilMan will bear the direct cost of the damaged parts.

3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).



Part of our Main Products:



Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 10

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 11



Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 12

Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 13



Weldless Drilling Rig Tools Elevator Links Single Arm 250/500/750 Tons 14
