Product Details:

Place of Origin: China
Certification: API 8A/8C
Model Number: RH Type Sucker Rod Hook

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD100-300/piece
Packaging Details: Export Wooden Case
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pieces per month
Get Best Price Contact Now

Detail Information

Product Name: 20 Ton, 25 Ton, 35 Ton Sucker Rod Hook For Drilling Rig With Factory Price Keywords: Sucker Rod Hook
Application: Oil Well Drilling Warranty: One Year
Material: Alloy Steel Processing Type: Forging
Highlight:

Drilling Handling Tools

,

Drilling Handling Tools Sucker Rod Hook

Product Description

20 Ton, 25 Ton, 35 Ton Sucker Rod Hook For Drilling Rig With Factory Price



Sucker Rod Hook is one of the hoisting equipment for sucker rods. It is suitable for all depth and operating condition complete with single-hand latch construction and safety ring. It is safe and dependable enough. The sucker rod hook is designed and manufactured according to API Spec 8A/8C.

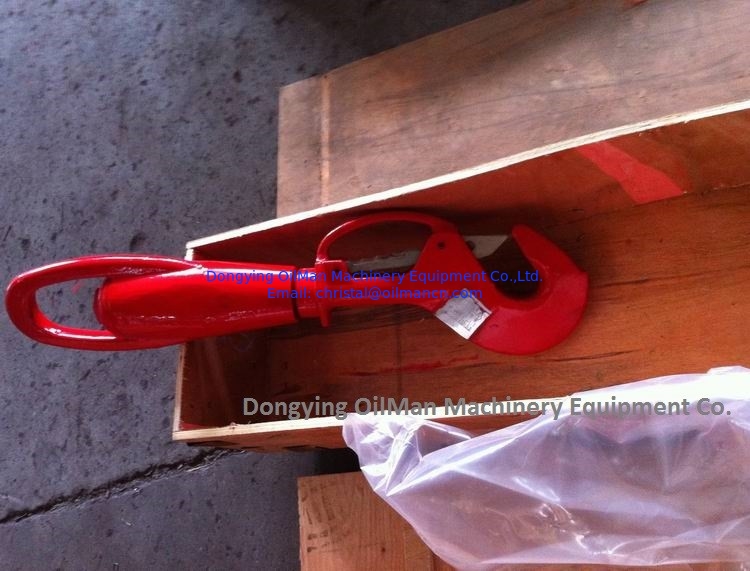

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type 0

Technical Parameter for Sucker Rod Hook:

Model RH20 RH25 RH25L RH35

Rated capacity

(short tons)

20 us tons

(180 KN)

25 us tons

(225 KN)

25 us tons

(225 KN)

35 us tons

(315 KN)

Length 488 mm 494 mm 798mm 960mm



SRE series sucker rod elevator is composed of elevator body and rod plates, which allow quick convert ion of the elevator body to various rod or pipe size. Additional saving is realized because work plates can be replaced instead of replacing the entire elevator.The basic elevator design provides excellent balance and non-tilt performance. Large access to the front and rear release levers assures easy, safe latching and unlatching.They are designed and manufactured according to API Spec 8C-specification for drilling and production Hoisting Equipment.

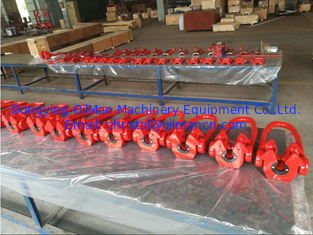

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type 1



Technical Parameter for Sucker Rod Elevator:

Rod size(in) Dia of Bore(mm) Max load(tons) Weight(kg)
1/2~5/8 19 20 12
5/8~3/4 23
3/4~7/8 26
7/8~1 30
1~11/8 32
11/4 35
11/2 41
5/8~3/4 23

25

30

17
3/4~7/8 26
7/8~1 30

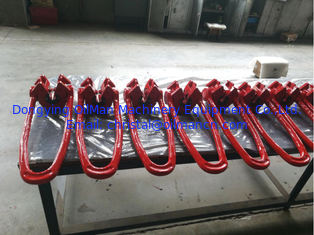

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type 2

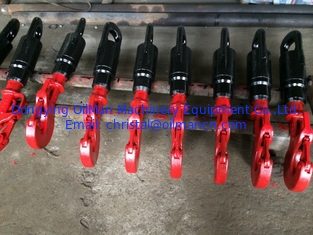

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type 3

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type 4



Packaging & Shipping:

Drilling Handling Tools Sucker Rod Hook 35 Ton RH Type 5
