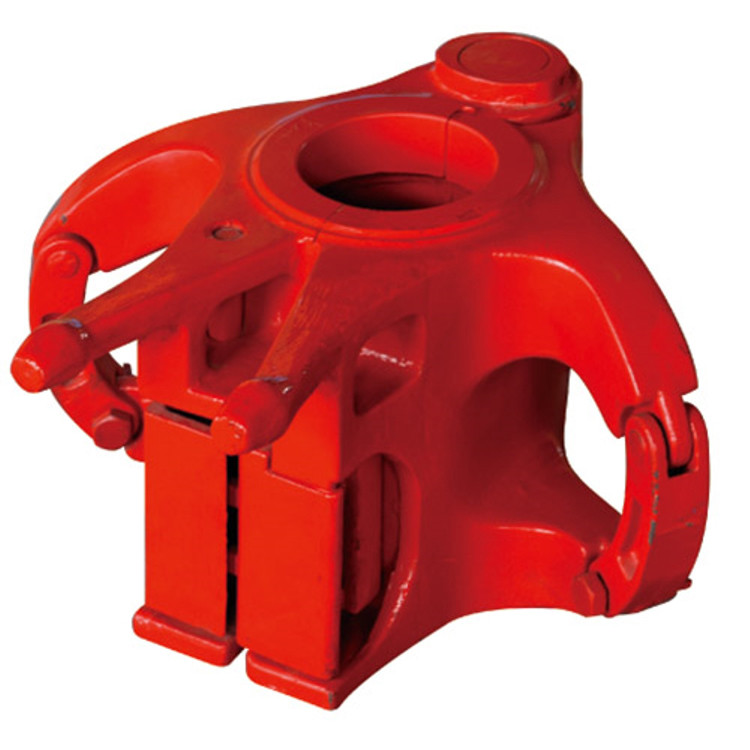

TA Drill Pipe Elevator API 8A/8C Standard For Handling Casing
Product Details:
| Place of Origin: | China |
| Certification: | API 8A/8C |
| Model Number: | TA Type Elevators |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD150-800/piece |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pieces per month |
|
Detail Information |
|||
| Product Name: | API 8A/8C Standard Type TA Elevators For Handling Casing/ Tubing/ Drill Collar | Keywords: | TA Elevators |
|---|---|---|---|
| Application: | Oil Well Drilling | Warranty: | One Year |
| Material: | Alloy Steel | Processing Type: | Forging |
| Highlight: | TA Drill Pipe Elevator,Drill Pipe Elevator API 8A |
||
Product Description
API 8A/8C Standard Type TA Elevators For Handling Casing/ Tubing/ Drill Collar
API 8A/8C Standard Type TA Elevators For Handling Casing/ Tubing/ Drill Collar
The TA Style Elevators are for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Capacity range from 35 tons to 150 tons and cover all size tubular up to 11-1/4".
Features:
1.Size: 2-7/8" to 11-1/4"
2.Rated Capacity: 35ton, 65ton, 100 ton, 150ton
3.Usage: Drill Pipe, Casing, Tubing
4.Standard: API 8A/8C
5.Type: DD, DDZ, CD, CDZ, SJ, TA, SX, SLX, Y series, etc.
Technical Parameter for TA type Elevator:
| Model | Size(in) |
Rated Cap. (short tons) |
|||
| DC | Tubing | Casing | |||
| NU | EU | ||||
| TA-35 | 2 7/8-3 1/8 | 1.05-2 7/8 | 1.05-2 7/8 | / | 35 |
| TA-65 | 2 7/8-3 1/8 | 1.66-2 7/8 | 1.66-2 7/8 | / | 65 |
| TA-100 | 3 1/8-5 1/4 | 2 3/8-5 | 23/8-4 1/2 | / | 100 |
| TA-150 | 4 1/8-11 1/4 | / | / | 4 1/2-10 3/4 | 150 |
