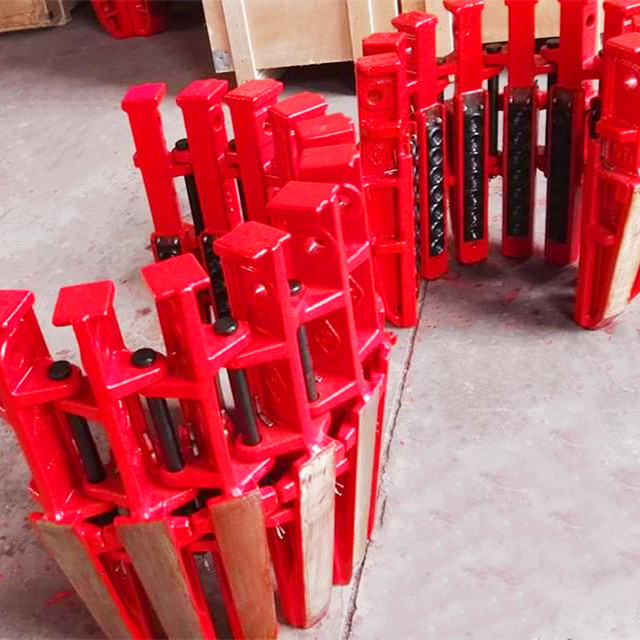

API Spec 7K Casing Slip CMS CMS-XL Type For 4-1/2"-30" Casing Pipe In Oilfield
Product Details:
| Place of Origin: | China |
| Certification: | API 7K |
| Model Number: | CMS, CMS-XL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD150-800/piece |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pieces per month |
|
Detail Information |
|||
| Condition: | New | Product Name: | API Spec 7K Casing Slip CMS CMS-XL Type For 4-1/2"-30" Casing Pipe In Oilfield |
|---|---|---|---|
| Keywords: | Casing Slips | Application: | Oil Drilling |
| Warranty: | One Year | Material: | Alloy Steel |
| Processing Type: | Forging | Color: | Red Or As Customer Requirement |
Product Description
API Spec 7K Casing Slip CMS CMS-XL Type For 4-1/2"-30" Casing Pipe In Oilfield
API Spec 7K Casing Slip CMS CMS-XL Type For 4-1/2"-30" Casing Pipe In Oilfield
Description
The CMS casing slips are designed and manufactured in API 7K and SY/T 5049 " Slips for well drilling" .It is manufactured in a structure of multi-segment pieces with firm structure, light weight , and large holding range, which is easy to fit the changing of the external diameter of the casing pipes due to wear and tear.
CMS-XL slips are manufactured from castings, reinforced to take severe service. The self-centering full wraparound grip prevents damage to casing. With certain simple adjustments, the CMS-XL can accommodate casing from 6-5/8″ to 42″ OD with 4″ taper.
Technical Specifications:
| Casing O.D. | In | 4 1/2 | 5 | 5 1/2 | 6 | 6 5/8 | 7 | 7 5/8 | 8 5/8 |
| mm | 114.3 | 127 | 139.7 | 152.4 | 168.3 | 177.8 | 193.7 | 219.1 | |
| Weight | Kg | 72 | 72 | 70 | 70 | 93 | 88 | 79 | 86 |
| Lb | 151.2 | 151.2 | 147 | 147 | 195.3 | 184.8 | 165.9 | 180.6 |
| Casing O.D. | In | 9 5/8 | 10 3/4 | 11 3/4 | 13 3/8 | 16 | 18 5/8 | 20 | 24 | 26 | 30 |
| mm | 244.5 | 273.1 | 298.5 | 339.7 | 406.4 | 473.1 | 508 | 609.6 | 660.4 | 762 | |
| Weight | Kg | 105 | 110 | 136 | 135 | 158 | 185 | 192 | 219 | 238 | 262 |
| lb | 220.5 | 231 | 285.6 | 283.5 | 331.8 | 388.5 | 403.2 | 459.9 | 499.8 | 550.2 | |
| Insert Bowl No. | No.2 | No.1 | Matching Casing Bushing | ||||||||
Products Show:
Packaging & Shipping:
Related Products:
Company Information:
About us
Dongying Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and spare parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
