API 7K Handling Tools Type WA-C Safety Clamps Oilfield Used for Oil rig Drilling Rig

API 7K Handling Tools Type WA-C Safety Clamps Oilfield Used for Oil rig Drilling Rig

Product Details:

Place of Origin: China
Certification: API 7K
Model Number: Type T, Type C, Type MP

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD150-800/piece
Packaging Details: Export Wooden Case
Delivery Time: 15-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 pieces per month
Get Best Price Contact Now

Detail Information

Condition: New Product Name: API 7K Handling Tools Type WA-C Safety Clamps Oilfield Used For Oil Rig Drilling Rig
Keywords: Safety Clamps Application: Oil Drilling
Warranty: One Year Material: Alloy Steel
Processing Type: Forging Color: Red Or As Customer Requirement

Product Description

API 7K Handling Tools Type WA-C Safety Clamps Oilfield Used for Oil rig Drilling Rig

API 7K Handling Tools Type WA-C Safety Clamps Oilfield Used for Oil rig Drilling Rig 0



API 7K Handling Tools Type WA-C Safety Clamps Oilfield Used for Oil rig Drilling Rig

Description

Safety Clamps are necessary tools for handling drill collars, flush joint pipes and small shoulder pipes. They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to API Spec 7K.

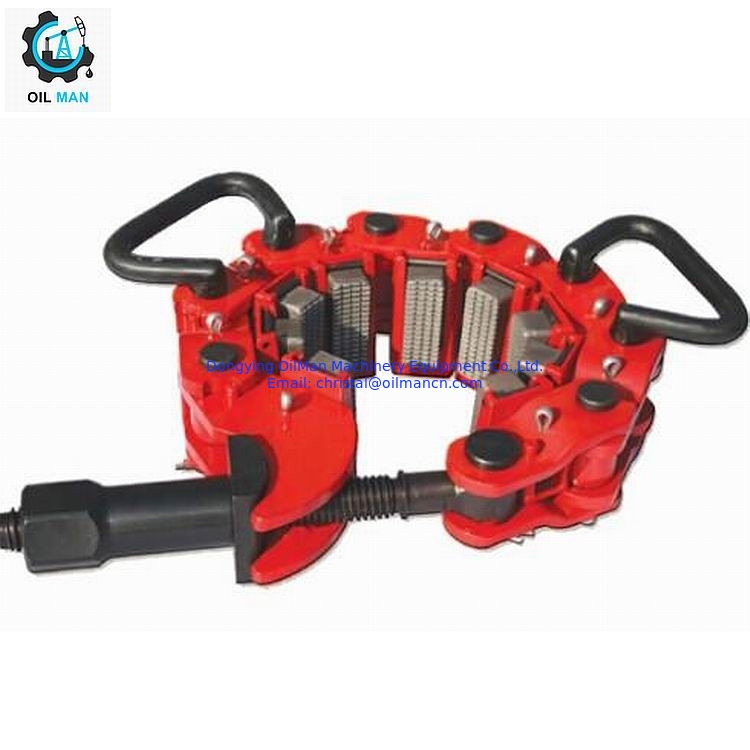

The Safety Clamp consists of individual links, flexibly hinged together. Each link has a separate tapered slip which acts as a gripping member, much like a tapered rotary slip, and each slip is held in a retracted position on the taper by spring tension. When the clamp is tightened, each small slip take a firm initial grip on the surface of the pipe. Should the pipe start to fall, or should load increase occur against the slips, the taper mounting causes each slip to wedge tighter against the surface of the pipe to increase the grip or lock the pipe against further movement.

Gripping pressure is always uniform around the pipe so there is little danger of crushing thin-walled pipe or damaging the pipe surface. And, since each link, complete with tapered slip, is interchangeable as a unit, the Safety Clamp is readily adaptable to virtually any diameter. Each link changes the effective gripping diameter of the clamp one inch. All parts are made of alloy steel, heat-treated for strength and gripping ability.

1.Type T

2.Type C

3.Type MP



Technical Parameters



Type Pipe O.D(in) No. of Chain Links
WA-C 3 1/2-4 5/8 7
4 1/2- 5 5/8 8
5 1/2-6 5/8 9
6 1/2- 7 5/8 10
7 1/2-8 5/8 11
8 1/2- 9 5/8 12
9 1/2- 10 5/8 13
10 1/2-11 5/8 14
11 1/2-12 5/8 15
12 1/2- 13 5/8 16
13 1/2- 14 5/8 17
14 1/2- 15 5/8 18
WA-T 1 1/8-2 4
2 1/8-3 1/4 5
3 1/2-4 1/2 6



Type Pipe O.D(in) No. of Chain Links
MP-S 2 7/8-4 1/8 7
4-5 8
MP-R 4 1/2-5 5/8 7
5 1/2-7 8
6 3/4-8 1/4 9
8-9 1/4 10
9 1/4-10 1/2 11
MP-M 10 1/2-11 1/2 12
11 1/2-12 1/2 13
12 1/2-13 5/8 14
13 5/8-14 3/4 15
14 3/4-15 7/8 16
MP-L 15 7/8-17 17
17-18 1/2 18
18 1/8-19 3/8 19
MP-XL 19 3/8-20 3/8 19
20 3/8-21 1/2 20
21-22 5/8 21
22 5/8-23 3/4 22
23 3/4-24 7/8 23
24 7/8-26 24
26-27 1/8 25
29 3/8-30 1/2 28
35-36 1/8 33
