5000 Psi Bop Spare Parts 13 5/8" Studded Flanged Top Bottom Connection
Product Details:
| Place of Origin: | China |
| Certification: | API & ISO |
| Model Number: | FH18-21,FH18-35,FH35-35,FH35-70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD800-1600/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 7-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Condition: | New | Product Name: | 13 5/8" 5000psi BOP Spare Parts, Annular BOP Packing Element BOP Rubber Core |
|---|---|---|---|
| Keywords: | Annular BOP Rubber Core | Application: | Oil & Gas Drilling |
| Warranty: | One Year | Nominal Diameter: | 7-1/16" To 21-1/4" |
| High Light: | 5000 Psi Bop Spare Parts,Bop Spare Parts 13 5/8" |
||
Product Description

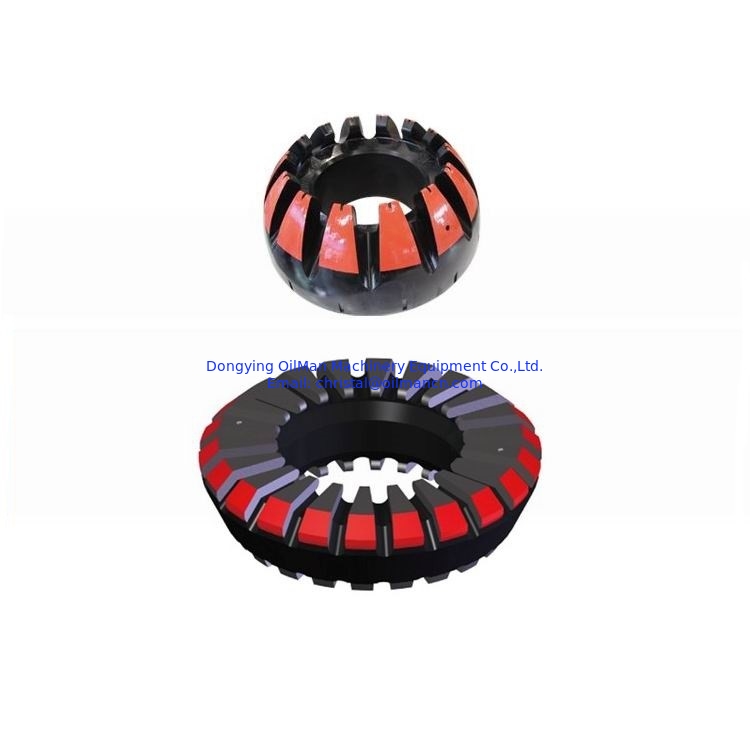

13 5/8" 5000psi BOP Spare Parts, Annular BOP Packing Element BOP Rubber Core
13 5/8" 5000psi BOP Spare Parts, Annular BOP Packing Element BOP Rubber Core
Descriptions of BOP spare parts:
BOP parts that we supply all come from original manufacturers, they are 100% interchangeable.
BOP part name: top sealing, front sealing, pipe ram, blind ram, slip ram, shear ram, spherical packer, bonnet, piston, shell.
Apply to below BOP:
Brand: SHENKAI BOP. RONGSHENG BOP ETC OTHER FAMOUS BRAND BOP
Type:Annular BOP, Single Ram BOP, Double Ram BOP, Shear Ram BOP
Working pressure:2000psi-15000psi(14 Mpa-105Mpa)
Operating temperature:-18deg--121deg
Bore size:7 1/16"-21 1/4"
Top & bottom connection: Flanged,studded
Characters of BOP spare parts:
In the structure, it is divided into annular blowout preventer with spherical plastic core, annular blowout preventer with cone-shaped plastic core, and blowout preventer with tube-shaped plastic core. Annular BOP top cap and housing are connected by bolts or claw blocks.
Blowout preventer with spherical plastic core and dust-proof ring.
Performance characteristics: reasonable structure, easy operation, long life of plastic core, adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in ans shapes, better performance by combining with ran blowout preventer in the use.
Working of BOP spare parts:
When wells must be sealed in case of kicks high pressure (10.5Mpa) oil from control systems enters into close-cavity under piston from housing oil outlet, to promote plastic core moving upward along ball surface, so that bearing tendons move closer to each other to moce the rubber between them to the center of wellhead so as to seal drilling tools or fully seal wellhead. In opening , hydraulic pressure oul enters into open-cavity above piston from housing oul inlet, to push piston moving downwards , so that plastic will reset with its own elasticity, wellhead will be open.
BOP packing element specification:
| Working Pressure MPa(psi) | Bore mm(in) | |||||||||
| 179 (7 1/16”) | 228 (9”) | 279 (11”) | 346 (13 5/8”) | 425 (16 3/4”) | 476 (18 3/4”) | 527 (20 3/4”) | 540 (21 1/4”) | 680 (26 3/4”) | 750 (29 1/2”) | |
| 70(10000) | √ | √ | √ | |||||||
| 35(5000) | √ | √ | √ | √ | √ | |||||
| 21(3000) | √ | √ | √ | |||||||
| 14(2000) | √ | |||||||||
| 3.5(500) | √ | |||||||||
Model for reference of BOP spare parts:
| Model | Dimensions (mm) | Weight (kg) | Working temperature | Range of seal well |
| FH18-21 |
Φ478x215 |
65.2 |
-18~93°C |
0~180 |
| FH18-35 | ||||
| FH18-70 | ||||
| FH28-35 |
Φ703x323 |
270 |
0~280 | |
| FH28-70 | ||||
| FH35-35 | Φ814x370 | 370 | 0~346.1 |
Detailed Images:
Related Products:
Our drilling BOP includes an annular BOP and a ram BOP. The annular BOP, consisting primarily of a shell, a header, a rubber core and a piston, and which by design is equipped with a hydraulic control system, can be used independently but usually operates in tandem with a ram BOP.
In accordance with API 16A requirements, the connections at the top and bottom of the rig are either flange or studded flange and can be conveniently connected to a drilling spool or ram BOP.
Our ram BOP features an advanced design that is nonetheless easy to operate.
The ram BOP is reliable, and spare parts can be easily replaced. As with the annular BOP, it can be used independently or coupled to other BOP combinations.
A hydraulic system can be used to open and close the ram, but should there be no power or air on site to run this system, the rams can be opened or closed manually.
