Coal Mine Polycrystalline Diamond Drill Bits for Hard Rock Mining

Coal Mine Polycrystalline Diamond Drill Bits for Hard Rock Mining

Product Details:

Place of Origin: China
Brand Name: OilMan
Certification: API & ISO
Model Number: PDC Drag bit

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD50-600/spc
Packaging Details: Export Wooden Case
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 800 pcs per month
Get Best Price Contact Now

Detail Information

Product Name: PDC Coal Mine Non-Coring Drilling / Drag Bits For Mining Equipment In Hard Rock Keywords: PDC Drag Bits
Usage: Water Well Drilling, Mining, Oil Well Drilling, Railways, Highways, Coal Mining, Etc. Condition: Brand New PDC Cutter Drag Bit
Drag Bit Diameter: 60mm - 660mm Material: Steel, Tungsten Carbide Matrix
Suitable Strata: Clay, Sand And Weathered Base Drilling Drag Bit Type: Pillar Type, Concave, Three Wings, Four Wings, Five Wings, Six Wings
High Light:

Coal Mine Polycrystalline Diamond Drill Bits

,

Mining Polycrystalline Diamond Drill Bits

Product Description

PDC Coal Mine Non-Coring Drilling / Drag Bits For Mining Equipment In Hard Rock



Description of PDC Drag Bits:


PDC drill bit is a new kind of super hard material synthesized by cemented carbide and synthetic diamond polycrystals under high temperature and high pressure. The drill bit manufactured by PDC has remarkable advantages over traditional cemented carbide bits. Its service life is 10-30 times longer than the conventional cemented carbide bits. PDC drill bits have good stability, long service life, high drilling efficiency and It is widely used in coal mining, railways, highways, water well, metal mines, mountain excavation, quarrying and tunnel engineering, etc.



PDC Drag Bits:

Product: PDC drag bits

Size: 60mm - 660mm

Wings: 3 wings, 4 wings, 5 wings, 6 wings

Condition: Brand new PDC cutter drag bit

Drilling formation: Soft to hard rock formation

Application: Water well, oil well, ore well drilling

Connection: API reg pin/ box thread

Gauge protection: with

Color: Blue, Golden, Silvery



PDC Drag Bits Features:



1. Soft to medium-hard formation application
Medium Parabolic crown profile and heavy cutter density provide high ROP in medium to hard formations with medium compressive strength and small abrasive layers.
2. Multi-function hydraulics
The deep blade design can get high ROP in medium to hard formations and can effectively cool the bit in hard and abrasive formations
3. Longer Bit Life
High intensified gauge design provides for long runs on steerable system through hard and abrasive formations as steering application.



PDC Drag Bits Specifications:



Size

(Inch)

Size

(mm)

Std. API thread

Approximate weight

(kgs)

2-3/8 60 Non-std. 1.3
2-1/2 63.5 Non-std. 1.5
3 76 Non-std. 2
3-1/2 89 Non-std. 3.5
3-7/8 98.4 2-3/8" 5
4 102 2-3/8" 5.5
4-1/4 108 2-3/8" 6.5
4-5/8 117.5 2-7/8" 8
5-1/4 133 2-7/8" 11
5-5/8 142.9 3-1/2" 13
5-7/8 149.2 3-1/2" 14
6 152 3-1/2" 17
6-1/8 155.6 3-1/2" 18
6-1/4 159.3 3-1/2" 20
6-1/2 165 3-1/2" 22
7-1/2 190.5 4-1/2" 31
7-5/8 193.7 4-1/2" 32
7-7/8 200 4-1/2" 35
8-1/2 215.9 4-1/2" 42
8-5/8 219 4-1/2" 44
8-3/4 222.3 4-1/2" 45
9-1/2 241.3 6-5/8" 60
9-5/8 244.5 6-5/8" 65
9-3/4 247.7 6-5/8" 70
9-7/8 250.8 6-5/8" 75
10-5/8 270 6-5/8" 82
11-5/8 295 6-5/8" 90
12-1/4 311.2 6-5/8" 98
13-5/8 346.1 6-5/8" 134
15-1/2 394 6-5/8" 190
16 406.4 6-5/8" 200
17-1/2 444.5 7-5/8" 251
20 508 7-5/8" 300
24 610 7-5/8" 600
26 660.4 7-5/8" 700

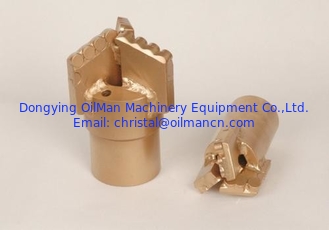

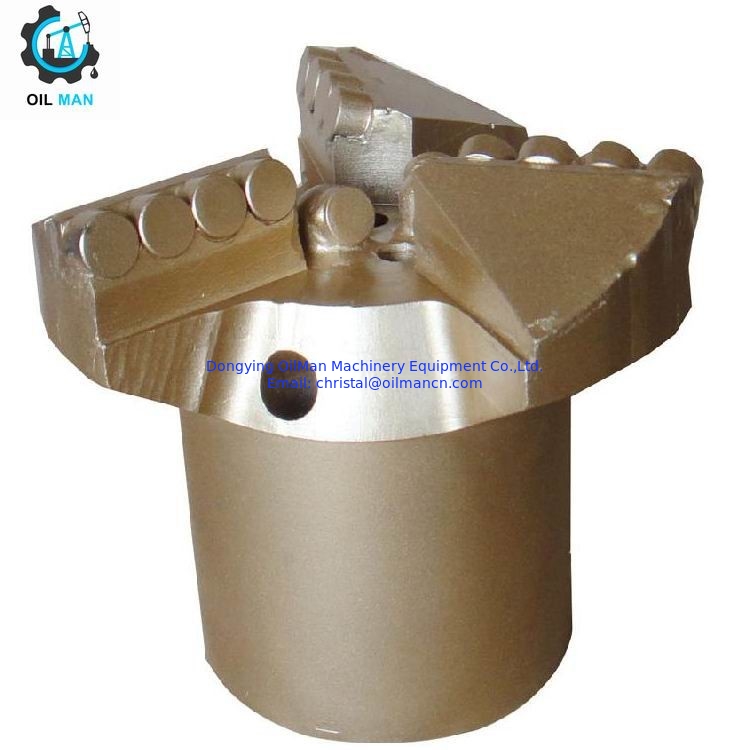

PDC Drag Bits Detailed Images:


Coal Mine Polycrystalline Diamond Drill Bits for Hard Rock Mining 0

Coal Mine Polycrystalline Diamond Drill Bits for Hard Rock Mining 1

Coal Mine Polycrystalline Diamond Drill Bits for Hard Rock Mining 2

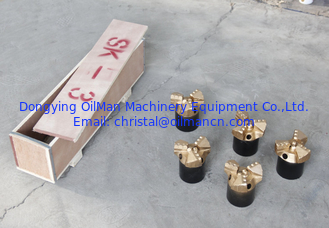

Packing & Shipment:


Packaging: In export wooden case.

Shipping: Less than 5pcs by express (DHL, UPS, TNT, FedEx, EMS) or by your choose.

                Less than 30pcs by Air or by your choose.

                More than 30pcs by Sea or by your choose.

Coal Mine Polycrystalline Diamond Drill Bits for Hard Rock Mining 3
