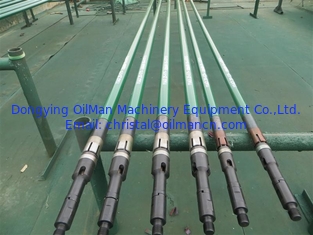

Spray Welding Oil Well Sucker Rods 1.2-1.8m With Hollow Cylinder
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API 11AX |
| Model Number: | RHAC, RHAM, RHBC, RHBM, etc |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD300-1500/set |
| Packaging Details: | Export Wooden Case or Pallet |
| Delivery Time: | 25-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
|
Detail Information |
|||
| Condition: | New | Product Name: | Spray Welding Plunger Oil Well Drilling Pump Oil Production Sucker Rod Pump With Hollow Cylinder |
|---|---|---|---|
| Keywords: | Sucker Rod Pump | Application: | Oil Drilling |
| Warranty: | One Year | Diameter: | 28mm, 32mm,38mm,44mm, 57mm, Etc |
| High Light: | Spray Welding Oil Well Sucker Rods,1.8m Oil Well Sucker Rods |
||
Product Description
Spray Welding Plunger Oil Well Drilling Pump Oil Production Sucker Rod Pump With Hollow Cylinder
Spray Welding Plunger Oil Well Drilling Pump Oil Production Sucker Rod Pump With Hollow Cylinder
Description of sucker rod pump:
The Sucker rod pump is connected to sucker rod after being assemblied on the surface then it is pulled down to the well bottom through the tubing. Thus it is convenient for the inspection and workover because they can be pulled up and down through the tubing and suitable for deeper well.
Rod pump:
Rod pump is also referred to as "insert pump" as its plunger is attached to, and moves up and down with the sucker rod string. It is suitable for reducing the time of workover for deep well as it is not necessary to pull all the tubing out of the well hole when checking the pump, which makes the operation quicker and the service life of tubing longer.The rod pump is in a state of "free hanging",so it is suitable for deviated wells. According to seating mode ,the rod pump can be divided into two types:cup hold-down and mechanical hold-down. According to anchored position, the pump can be divided into top hold-down pumps and bottom hold-down pumps which include stationary barrel and traveling barrel types.
Specifications Of Rod Pumps:
| Model | Nominal Dia. mm(in) | Plunger Length m(ft) | Stroke m | Pump Constant m3/d | Tubing And Thread | In Sucker Rod |
| 20-125RHAC/M | 32(1.25) | 1.2-1.8 (4-6) | ≤7.5 | 1.14 | 2⅜ | ¾ |
| 25-150RHAC/M | 38(1.50) | 1.64 | 2⅞ | ¾ | ||
| 25-175RHAC/M | 44(1.75) | 2.24 | 2⅞ | ¾ | ||
| 30-225RHAC/M | 57(2.25) | 3.69 | 3½ | ¾ | ||
| 20-125RHBC/M | 32(1.25) | 1.14 | 2⅜ | ¾ | ||
| 25-150RHBC/M | 38(1.50) | 1.64 | 2⅞ | ¾ | ||
| 25-175RHBC/M | 44(1.75) | 2.24 | 2⅞ | ¾ | ||
| 30-225RHBC/M | 57(2.25) | 3.69 | 3½ | ¾ | ||
| 20-125RHTC/M | 32(1.25) | 1.14 | 2⅜ | ¾ | ||
| 25-150RHTC/M | 38(1.50) | 1.64 | 2⅞ | ¾ | ||
| 25-175RHTC/M | 44(1.75) | 2.24 | 2⅞ | ¾ | ||
| 30-225RHTC/M | 57(2.25) | 3.69 | 3½ | ¾ |
Tubing Pump:
For tubing pump, the barrel is put in the well to the designed depth with tubing. And then put the plunger into the barrel with sucker rod. Given the tubing size, the bore of the tubing pump is larger than that of the rod pump, so the pump rate is higher. According to seating mode, the rod pump can be divided into three types: THC pump (Stationary Heavy Wall, Cup Seating, Tubing pump), THM pump (Stationary Heavy Wall Mech. Seating, Tubing Pump) and THD pump.
Specifications Of Tubing Pumps:
| Model | Nominal Dia. mm(in) | Plunger Length m(ft) | Stroke m | Pump Constant m3/d | Tubing And Thread | In Sucker Rod |
| 20-125TH | 32(1.25) |
1.2-1.8 (4-6) |
0.6-7.3 | 1.14 | 2⅜NU/EU | ¾ |
| 25-125TH | 32(1.25) | 0.6-7.3 | 1.14 | 2⅞NU/EU | ¾ | |
| 20-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 2⅜NU/EU | ¾ | |
| 25-150TH | 38(1.50) | 0.6-7.3 | 1.64 | 2⅞NU/EU | ¾ | |
| 20-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 2⅜NU/EU | ¾ | |
| 25-175TH | 44(1.75) | 0.6-7.3 | 2.24 | 2⅞NU/EU | ¾ | |
| 25-225TH | 57(2.25) | 0.6-7.3 | 3.69 | 2⅞NU/EU | ¾ | |
| 30-275TH | 70(2.75) | 0.6-7.3 | 5.50 | 3½NU/EU | ⅞ | |
| 35-325TH | 83(3.25) | 0.6-7.3 | 7.70 | 4NU/EU | ⅞ | |
| 40-375TH | 95(3.75) | 0.6-7.3 | 10.26 | 4½NU/EU | 1 |
Products Show:
Company Information:
About us
Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig accessories, well control system, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Certificates
API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
