OilMan 1-1/8 Inch Oil Sucker Rod With Coupling API 11B Spec
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | API 11B |
| Model Number: | 5/8",3/4",7/8",1",1 1/8" |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pc |
|---|---|
| Price: | USD5-100/pc |
| Packaging Details: | In Bundles |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month |
|
Detail Information |
|||
| Product Name: | API 11B Spec 5/8, 3/4, 7/8, 1, 1-1/8 Inch Sucker Rods With Coupling For Sale | Keywords: | API 11B Sucker Rods |
|---|---|---|---|
| Material: | High Quality Carbon Steel And Alloy Steel | Usage: | Oil Production, Oil And Petroleum |
| Warranty: | One Year | Size: | 5/8",3/4",7/8",1",1 1/8" |
| Grade: | C,K,D,KD,HL,HY | Length: | 7.62m, 8m, 9.14m |
| High Light: | 1/8 Inch Oil Sucker Rod,OilMan Oil Sucker Rod |
||
Product Description
API 11B Spec 5/8, 3/4, 7/8, 1, 1-1/8 Inch Sucker Rods With Coupling For Sale
Description of sucker rods:
We can supply sucker rods,polished rods and sinker bars.
Sucker rod is the common equipment in the oil extraction. It is manufactured through many process including the testing, straightening and forging. The sucker rod is placed between the polished rod and oil well pump. To deliver power. Sucker rod is manufactured from high quality carbon steel and alloy steel, which is conform to the API Spec 11B standard.
Features of sucker rods:
Grade C sucker rod is made from fine carbon steel. It is featured by mid-strength, good plasticity, toughness, corrosion resistance. It is suitable for sour medium environment where it is not susceptible to sulphuric stress cracking.
Grade D sucker rod is made from fine alloy steel, featured by high strength, better plasticity and long service life after heat treatment. This product is suitable for no-corrosion or light-corrosion environment oil-well widely.
Grade HL and HY sucker rods are super-high strength sucker rod, having the same size and main parameter as grade D sucker rod, but their strength is capable to reach 966~1195Mpa. Grade HL, HY sucker rods are suitable for the deep oil-well or big-pump capacity oil-well.
And grade K, KD and KH sucker rod are made from fine Cr-Ni-Mo alloy steel containing different amount of Ni. They possess more powerful anti-corrosion function. The products are suitable for strong corrosion oil-well, with depth of shallow, middle and deep respectively.
Technical Parameters of Sucker Rods
| SIZE (in) |
ROD D.(in) | THREAD D. (in) |
LENGTH (ft) |
OUTSIDE DIAMETER OF PIN SHOULDER(mm) |
LENGTH OF PIN(mm) |
LENGTH OF WRENCH SQUARE(mm) |
WIDTH OF WRENCH SQUARE(mm) |
| 5/8" | 5/8" | 15/16 | 2 4 6 8 10 25 30 |
31.75 | 31.75 | ≥31.75 | 22.23 |
| 3/4" | 3/4" | 1-1/16 | 38.10 | 36.51 | 25.40 | ||
| 7/8" | 7/8" | 1-3/16 | 41.28 | 41.28 | |||
| 1" | 1" | 1-3/8 | 50.80 | 47.63 | ≥38.10 | 33.34 | |
| 1-1/8" | 1-1/8" | 1-9/16 | 57.15 | 53.98 | ≥41.28 | 38.10 |
Grade and Mechanical Properties
| No. | Grade | Tensile Strength Rel(Mpa) |
Yield Strength Rm(Mpa) |
Percentage Elongation A(%) | Contraction Percentage Of Area Z(%) |
| 1 | C | 620-795 | ≥415 | ≥13 | ≥50 |
| 2 | K | 620-795 | ≥415 | ≥13 | ≥60 |
| 3 | D | 795-965 | ≥590 | ≥10 | ≥50 |
| 4 | KD | 795-965 | ≥590 | ≥10 | ≥50 |
| 5 | HL | 965-1195 | ≥795 | ≥10 | ≥45 |
| 6 | HY | 965-1195 | —— | —— | —— |

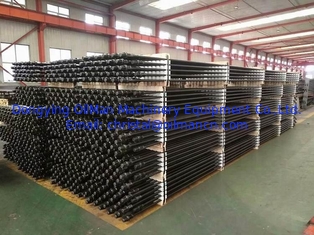

Products Show:
Packaging & Shipping:
FAQ:
How can I place order?
A: You can contact us by email about your order details, or place order on line.
How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T , L/C, Western Union are the most usual ways we are using. If you want to use other way, please tell me, we can discuss.
What’s the order procedure?
A: First we discuss order details, production details by email, Whats app or Wechat. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
What’s the warranty period?
A: Warranty for one year after delivery except wearing parts.
How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
